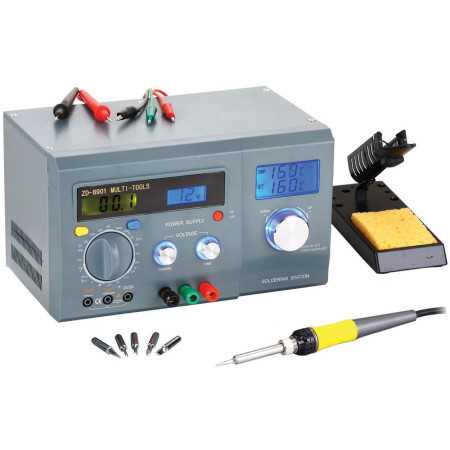

ZD-8901 Digital Soldering Station 3in1 Description
The ZD-8901 is a multifunctional workstation with built-in soldering station, digital multimeter, as well as a laboratory power supply. Due to the variety of functions, this station is especially space-saving and offers everything you need for repair, maintenance and testing of electronic devices. The soldering station covers the temperature range from 160 to 480°C and has a particularly short heat-up time thanks to the ceramic heating element. The 40 Watt soldering iron is equipped with the N9-1 quality soldering tip and additionally 4 further soldering tips (N9-2 to N9-5) are included to optimize soldering in various applications. Thanks to the dual LCD display, both the set temperature and the active temperature can be seen on the tip. The digital multimeter is used to measure AC/DC voltage, DC current, resistors, diodes and batteries. It achieves readings up to 500V AC/DC voltage and 10A DC current, as well as resistance measurements up to 20MΩ. The 2000 counts display is backlit and the user can save readings thanks to the data hold function. With the additional built-in laboratory power supply, DC voltage from 1.2V to 15V and maximum 1A current can be output.
In summary, the ZD-8901 soldering station is a multifunctional station that is perfect for applications in the lab or in schools, as well as ideal for repair/maintenance work.
The ZD-8901 complies with all EU safety standards.
ZD-8901 Digital Soldering Station 3in1 Features
Multimeter:
- 2000 counts display with backlight
- AC/DC voltage, DC current, resistance measurement functions
- Diode/ continuity test
- Data hold function to store measured values
- Battery tester for 1.5V/9V/12V
- Battery operated with 9V battery(6F22)
Laboratory Power Supply:
- DC voltage adjustable from 1.2V - 15V
- Maximum current of 1A
Soldering Station:
- PTC ceramic heating element with up to 120 Watt fast heating power
- Adjustable temperature range from 160°C - 480°C
- 40 Watt soldering iron with N9-1 soldering tip
- 4 spare soldering tips in different shapes (N9-2, N9-3, N9-4, N9-5)
- Dual LCD display to show set and current temperature
ZD-8901 Digital Soldering Station 3in1 Scope of Delivery
- ZD-8901 station
- Soldering iron with 5-pin connection
- Support for the soldering iron
- 5 soldering tips (N9-1, N9-2, N9-3, N9-4, N9-5)
- Sponge for wiping the soldering tip
- Instruction manual
