PCE1000-UNI Universal Power Supply Description

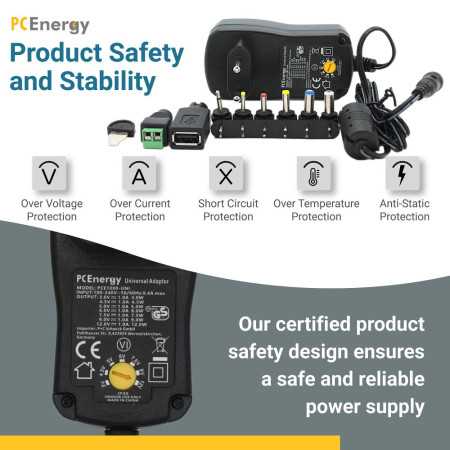

The PCE1000-UNI is an especially flexible and universally applicable plug-in power supply with different, adjustable voltages.
With the help of the included key you can adjust the output voltage at the rotary switch in 7 different steps (3V, 4.5V, 5V, 6V, 7.5V, 9V, 12V). With an output current of 1A, it delivers a maximum power of 12W.
Thanks to the total of 6 plug-in adapters (see below), the power supply can power a wide variety of devices, such as notebooks, external hard drives, phones, chargers, routers, scanners, DVD players, docking stations, media players, motor controllers, various office equipment, and more.
The additionally introduced USB Type-A adapter and the LED terminal strip adapter not only significantly expand the range of applications by a variety of small electronic devices, but are also interesting for hobbyists.
Safety is provided by overload, overvoltage and short-circuit protection, which are integrated in the device.
The PCE1000-UNI complies with all EU safety standards.
PCE1000-UNI Universal Power Supply Features
- High efficiency (up to 83%)
- Adjustable output voltage: 3V, 4.5V, 5V, 6V, 7.5V, 9V, 12V
- Interchangeable connectors: 2.35 x 0.7mm; 3.5 x 1.35mm; 4.0 x 1.7mm; 5.5 x 2.1mm; 5.5 x 2.5mm hollow plug (outside/inside), 2.5 mono jack plug, USB Type-A socket, terminal block
- Protected against overload, overvoltage and short circuits
- RoHS and REACH compliant
- GS certified
- DIN standard compliant: EN62368-; EN60950; EN 61558; EN 55032; EN55035; EN 61000-3-2; EN 61000-3-3
PCE1000-UNI Universal Power Supply Technical Data
- Input voltage: 100-240V 50/60 HZ alternating voltage
- Output voltage: 3-12V DC
- Output current: 1A
- Power: max 12 Watt
- Operating temperature: 0 °C to 40 °C
- Relative humidity during operation: 25 - 75%.
- Storage temperature: -10 °C to 80 °C
- Dimensions (housing without cable): 75.5 x 43.3 x 35.8mm (LxWxH)
