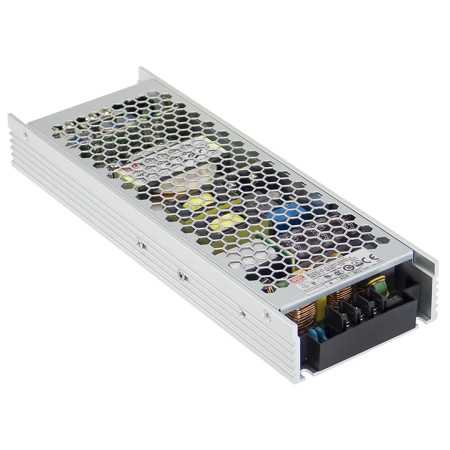

UHP-500-24 Switching Power Supply, U-Bracket, 501,6W, 24V, 20,9A, MEAN WELL
zoom_out_map
chevron_left chevron_right


Advertising [AfterProductThumbs]

UHP-500-24 Switching Power Supply, U-Bracket, 501,6W, 24V, 20,9A, MEAN WELL

UHP-500-24 Switching Power Supply, U-Bracket, 501,6W, 24V, 20,9A, MEAN WELL

€85.85

€85.85 Tax excluded

check 136


Advertising [ProductAdditionalInfo]

local_shipping FREE shipping on orders over $25.00 shipped by Amazon. Details


Advertising [Product3rdColumn]

Security policy
Site hosted and secured in Eu.
Delivery policy
Packages transported with the service of Bpost, DpD, PostNl or your own carrier.
Return policy
Defective devices (not electronic components) are (according to the manufacturer's warranty) exchanged or repaired.

MEAN WELL UHP-500 Switching Power Supply Series Description:

The UHP-500 series consists of 500W single output power supplies with a 31mm slim-type design. With an input range of 90~264VAC, the entire series offers an output voltage line of 4.2V, 5V, 12V, 24V, 36V, 48V, and 55V. In addition to the high efficiency (up to 95%), the whole series can operate from -30°C ~ 70°C under air convection without fan. The UHP-500 series offers various protection functions and 5G anti-vibration capability. In addition, the series complies with international safety regulations such as TUV BS EN/EN62368-1, UL62368-1, GB4943 and BS EN/EN60335-1. UHP-500 series serves as a powerful power supply solution for various industrial applications.

MEAN WELL UHP-500 Switching Power Supply Series Features:

  • Enclosed design (U-bracket)
  • universal input
  • slim and low profile (31mm)
  • fanless design, 500W convection
  • built-in PFC circuit
  • 150% peak load capacity (100ms)
  • Operating altitude up to 5000m
  • LED indicator for power on
  • overload protection by shutdown (hiccup), auto-recovery
  • protected against overload, overvoltage and overtemperature
  • EMC standards: EN 55032 Class B
  • Safety standards: UL 62368-1, EN 62368-1, EN 60335-1 (except 55V)
  • 3 years manufacturer warranty
  • UHP_R: DC-OK signal and redundancy function

Notice:

This product is intended for installation in terminal equipment.
For detailed technical data, please refer to the data sheet on the "Downloads" tab.
MEAN WELL
UHP-500-24
136 Items
4021087047593
UHP-500-24
