IRM-90-24ST switching power supply, module, 90W, 24V, 3.75A screw, MEAN WELL

Name: IRM-90-24ST switching power supply, module, 90W, 24V, 3.75A screw, MEAN WELL
Brand: MEAN WELL
SKU: IRM-90-24ST
Price: 24.05 EUR
Availability: InStock

€24.05

€24.05 Tax excluded

Advertising [ProductAdditionalInfo]

FREE shipping on orders over $25.00 shipped by Amazon. Details

Advertising [Product3rdColumn]

Security policy
Site hosted and secured in Eu.

Delivery policy
Packages transported with the service of Bpost, DpD, PostNl or your own carrier.

Return policy
Defective devices (not electronic components) are (according to the manufacturer's warranty) exchanged or repaired.

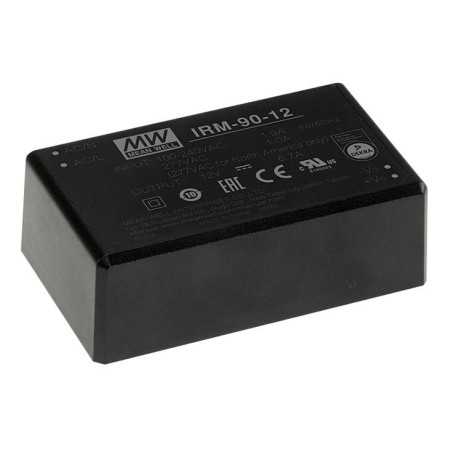

MEAN WELL IRM-90 Series Description:

IRM-90 is a 90W miniature power supply (87*52*29.5mm) with AC-DC modular design, which can be soldered on the PCB of various electronic instruments or industrial automation equipment. The power supply allows a universal input voltage range of 85~305VAC. The 94V-0 flameproof housing and fully potted silicone improve heat dissipation and meet vibration resistance requirements of up to 5G. In addition, the enclosure is dust and moisture proof. With high efficiency of up to 93% and ultra-low power consumption of less than 0.21W at idle, the IRM-90 series complies with the global low power consumption guideline for electronics. The entire series meets Class Il requirements (no FGpin) and features integrated EMI filter components, which in turn enable compliance with the EN55032 Class B standard. Thanks to the superior EMC characteristics of the series, the electronic terminals/products are protected from electromagnetic interference.

MEAN WELL IRM-90 Series Features:

Closed design
universal input
Power consumption at no load<0.21W
Compact size
protected against short circuit, overload and overtemperature
cooling by free air convection
insulation class II
Safety standards: UL/EN 62368-1
EMC standards: EN55032 Class B and others
IRM-90-: PCB mount
IRM-90-ST: Screw terminals

For detailed technical specifications, please check the data sheet in the "downloads" section.
