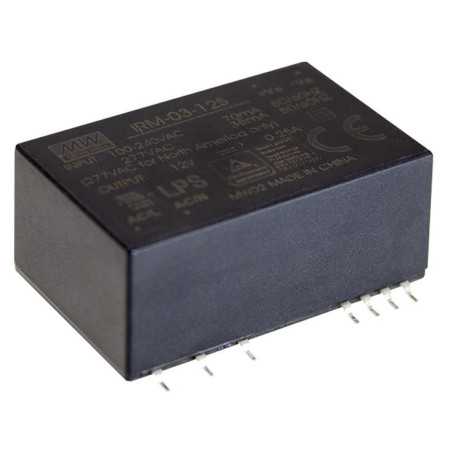

IRM-03-12 Switching power supply, module, 3W, 12V, 0.25A PCB, MEAN WELL

Name: IRM-03-12 Switching power supply, module, 3W, 12V, 0.25A PCB, MEAN WELL
Brand: MEAN WELL
SKU: IRM-03-12
Price: 4.39 EUR
Availability: InStock

€4.39 Tax included

€4.39 Tax excluded

Advertising [ProductAdditionalInfo]

FREE shipping on orders over $25.00 shipped by Amazon. Details

Advertising [Product3rdColumn]

Security policy
Site hosted and secured in Eu.

Delivery policy
(edit with the Customer Reassurance module)

Return policy
(edit with the Customer Reassurance module)

MEAN WELL IRM-03 Power Supply Module Series Description:

IRM-03 is a 3W miniature power supply (37*24*15mm) with AC-DC modular design, which can be soldered on the PCB of various electronic instruments or industrial automation equipment. The power supply allows a universal input voltage range of 85~305VAC. The phenolic package and fully encapsulated silicone improve heat dissipation and meet vibration resistance requirements of up to 5G. In addition, the housing is dust and moisture proof. With high efficiency of up to 80% and ultra-low power consumption of less than 0.075W at idle, the IRM-03 series complies with the global low power consumption guideline for electronics. The entire series meets Class Il requirements (no FGpin) and features integrated EMI filter components, which in turn enable compliance with the EN55032 Class B standard. Thanks to the superior EMC characteristics of the series, the electronic terminals/products are protected from electromagnetic interference. The IRM-03 series is available not only as a module model, but also as an SMD model.

MEAN WELL IRM-03 Series Features:

Enclosed design, PCB mounting
Universal input
Power consumption at no load<0.075W
Compact size
Protected against short circuit, overload and overvoltage
Cooling by free air convection
Insulation class II
Safety standards: UL/EN 62368-1, EN60335-1
EMC standards: EN55032 Class B, EN61000-3-2,-3
IRM-03: wired
IRM-03-S: SMD

For detailed technical specifications, please check the data sheet in the "downloads" section.
