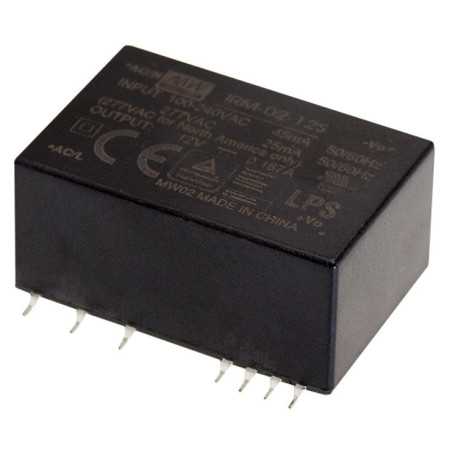

IRM-02-9S switching power supply, module, 2W, 9V, 0.222A SMD, MEAN WELL
zoom_out_map
chevron_left chevron_right


Advertising [AfterProductThumbs]

IRM-02-9S switching power supply, module, 2W, 9V, 0.222A SMD, MEAN WELL

IRM-02-9S switching power supply, module, 2W, 9V, 0.222A SMD, MEAN WELL

€5.67

€5.67 Tax excluded

check 231


Advertising [ProductAdditionalInfo]

local_shipping FREE shipping on orders over $25.00 shipped by Amazon. Details


Advertising [Product3rdColumn]

Security policy
Site hosted and secured in Eu.
Delivery policy
Packages transported with the service of Bpost, DpD, PostNl or your own carrier.
Return policy
Defective devices (not electronic components) are (according to the manufacturer's warranty) exchanged or repaired.

MEAN WELL IRM-02 Series Description:

IRM-02 is a 2W miniature power supply (33.7*22.2*15mm) in AC-DC modular design, which can be soldered on the PCB of various electronic instruments or industrial automation equipment. The power supply allows a universal input voltage range of 85~305VAC. The phenolic package and fully encapsulated silicone improve heat dissipation and meet vibration resistance requirements of up to 5G. In addition, the housing is dust and moisture proof. With high efficiency of up to 77% and ultra-low power consumption of less than 0.075W at idle, the IRM-02 series complies with the global low power consumption guideline for electronics. The entire series meets Class Il requirements (no FG-pin) and features integrated EMI filter components, which in turn enable compliance with the EN55032 Class B standard. Thanks to the superior EMC characteristics of the series, the electronic terminals/products are protected from electromagnetic interference. The IRM-02 series is available not only as a module model, but also as an SMD model.

MEAN WELL IRM-02 Series Features:

  • Enclosed design, PCB mounting
  • universal input
  • Power consumption at no load<0.075W
  • Compact size
  • protected against short circuit, overload and overvoltage
  • cooling by free air convection
  • low standby power consumption
  • insulation class II
  • Safety standards: UL/EN62368-1
  • EMC standards: EN55032 Class B, EN61000-3-2,-3
  • 3 years manufacturer warranty
  • IRM-02: leaded
  • IRM-02S: SMD
For detailed technical specifications, please check the data sheet in the "downloads" section.
MEAN WELL
IRM-02-9S
231 Items
4021087034630
IRM-02-9S
