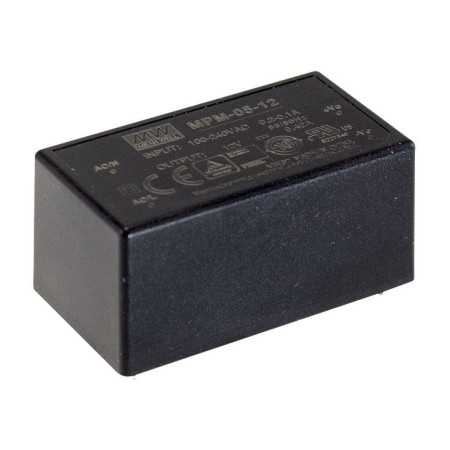

MPM-05-12 Switching power supply, module, 5W, 12V, 0.42A, MEAN WELL
zoom_out_map
chevron_left chevron_right

MPM-05-12 Switching power supply, module, 5W, 12V, 0.42A, MEAN WELL

MPM-05-12 Switching power supply, module, 5W, 12V, 0.42A, MEAN WELL

€7.82

€7.82 Tax excluded

check 25

local_shipping FREE SHIPPING  Belgium-France-Nederland-Germany on ALL PRODUCTS  for 125 € order

Security policy
Site hosted and secured in Eu.
Delivery policy
Packages transported with the service of Bpost, DpD, PostNl or your own carrier.
Return policy
Defective devices (not electronic components) are (according to the manufacturer's warranty) exchanged or repaired.

Meanwell MPM-05 AC/DC Module-type Medical Grade Power Supplies Series Description:

The MPM-05 series is composed of 5W high density and small size (45.7*25.4*21.5mm) AC/DC module-type medical grade power supplies. It operates within a range of 80~264VAC, it has a low no load power consumption (less than 0.075W), a high efficiency of up to 82%, Class II (no FG) double insulation, outstanding heat dissipation, a high lifespan thanks to the interior potting, withstands 5G anti-vibration, offers high EMC performance, and has 4KVAC isolation. The design conforms to IEC/BS EN/EN60601-1 and ANSI/AAMI ES60601-1 version three with 2xMOPP level and offers ultra-low leakage current.The series is perfectly suitable for BF (patient contact) type medical device applications or similar.

Meanwell MPM-05 AC/DC Module-type Medical Grade Power Series Features:

  • closed design, printed circuit board mounting
  • universal input
  • overload protection by shutdown, auto recovery
  • protected against short circuit, overload, overvoltage, overtemperature
  • insulation class II
  • complies with EN60601-1
  • low no-load power

Meanwell MPM-05 AC/DC Module-type Medical Grade Power Supplies Series Applications:

  • Portable medical equipment
  • Medical computer monitors
  • Mobile clinic workstations
For detailed technical specifications, please check the data sheet in the "downloads" section.
MEAN WELL
MPM-05-12
25 Items
4021087042772
MPM-05-12
