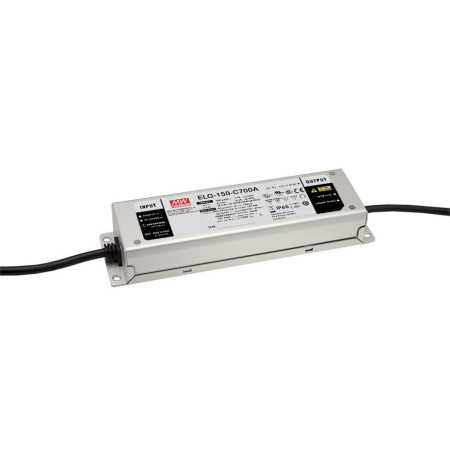

ELG-150-C500B-3Y Led driver, IP67 150W, 150-300V, 500mA CC dimmable+PE, MEAN WELL
Advertising [ProductAdditionalInfo]
local_shipping FREE shipping on orders over $25.00 shipped by Amazon. Details
Advertising [Product3rdColumn]
Site hosted and secured in Eu.
Packages transported with the service of Bpost, DpD, PostNl or your own carrier.
Defective devices (not electronic components) are (according to the manufacturer's warranty) exchanged or repaired.
MEAN WELL ELG-150-C LED Driver Series Description:
MEAN WELL ELG-150-C LED Driver Series Features:
- Constant current output
- Independent power supply
- Metal housing with functional grounding
- Wide range input
- IP67/65 certification for indoor or outdoor installation
- Power consumption without load / standby <0.5W
- overload protection by current limiting, auto recovery
- protected against short circuit, overload, overvoltage, overtemperature
- Very long lifetime > 50000 hours
- Built-in PFC circuit
- Suitable for LED lighting applications
- SELV Compliant
- Safety standards: EN61347-1, EN61347-2-13 and others
- EMC Standards: EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61547 and others
- Corresponds to 6kV Surge Immunity Level
- ELG-150-3Y: protective conductor integrated in primary cable
- ELG-150: IP67, voltage and current fixed, not dimmable
- ELG-150-A: IP65, output voltage and current limit adjustable via internal potentiometer on bottom of housing, not dimmable
- ELG-150-B: IP67, dimming via control line, 3 in 1 dimming function (0...10V DC, PWM, 100k Ohm potentiometer)
- ELG-150-AB: IP65, output voltage and current limitation adjustable via internal potentiometer on bottom side of housing, dimming via integrated control line, 3 in 1 dimming function (0...10V DC, PWM, 100k Ohm potentiometer)
- ELG-150-DA: IP67, DALI interface
MEAN WELL ELG-150-C LED Driver Series Applications Examples:
- LED street lighting
- LED building lighting
- LED hall lighting
- LED floodlighting
