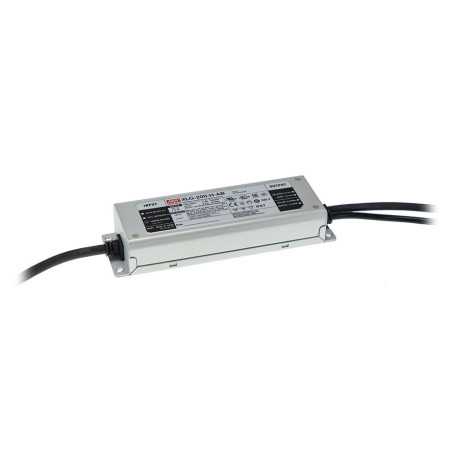

XLG-200-L-AB Led driver, IP67 200W, 142-285V, 350-1050mA CP, MEAN WELL
zoom_out_map
chevron_left chevron_right


Advertising [AfterProductThumbs]

XLG-200-L-AB Led driver, IP67 200W, 142-285V, 350-1050mA CP, MEAN WELL

XLG-200-L-AB Led driver, IP67 200W, 142-285V, 350-1050mA CP, MEAN WELL

€41.25

€41.25 Tax excluded

check 24


Advertising [ProductAdditionalInfo]

local_shipping FREE shipping on orders over $25.00 shipped by Amazon. Details


Advertising [Product3rdColumn]

Security policy
Site hosted and secured in Eu.
Delivery policy
Packages transported with the service of Bpost, DpD, PostNl or your own carrier.
Return policy
Defective devices (not electronic components) are (according to the manufacturer's warranty) exchanged or repaired.

MEAN WELL XLG-200 LED Driver Series Description:

The XLG-200 series consists of 200W LED AC/DC drivers with constant power mode. The series can operate at 100~305VAC and offers models with various output currents, ranging from 700mA to 16A. Thanks to the high efficiency (up to 94%) and fanless design, the entire series can operate at an enclosure temperature of -40°C~+90°C under free air convection. The metal enclosure and IP67 protection make the XLG-200 series suitable for both indoor and outdoor applications. The XLG-200 series complies with the latest version of international safety regulations 1EC61347/GB7000.1-2015 and UL8750. The output and dimming circuit also fully complies with the new regulations and is isolated to ensure user safety during installation.

MEAN WELL XLG-200 LED Driver Series Features:

  • independent operating unit
  • Universal input 100...305V AC
  • metal housing IP67
  • overload protection by current limiting, auto recovery
  • protected against short circuit, over current, over voltage, over temperature
  • built-in PFC circuit
  • low no-load power <0.5W
  • for LED lighting applications
  • SELV compliant (except L-type)
  • Safety standards: EN61347-1, EN61347-2-13, EN62384 and others
  • EMC Standards: EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61547 and others
  • Surge Immunity Level 6kV
  • 5 years manufacturer warranty
  • XLG-200_: CV+CC (Mixed Mode)
  • XLG-200-L_, XLG-200-H_: Constant power (CP Mode)
  • XLG-200_A: IP67, current limit adjustable via internal potentiometer, not dimmable
  • XLG-200_AB: IP67, current limitation adjustable via internal potentiometer, 3 in 1 dimming function (0...10V DC, 10V PWM, potentiometer)

MEAN WELL XLG-200 LED Driver Series Application Examples:

  • Street lighting
  • Floodlighting applications
  • Billboard lighting
  • Stage lighting
  • Hall lighting

Note:

For detailed technical data, please refer to the data sheet in the "Downloads" section.
MEAN WELL
XLG-200-L-AB
24 Items
4021087051545
XLG-200-L-AB
