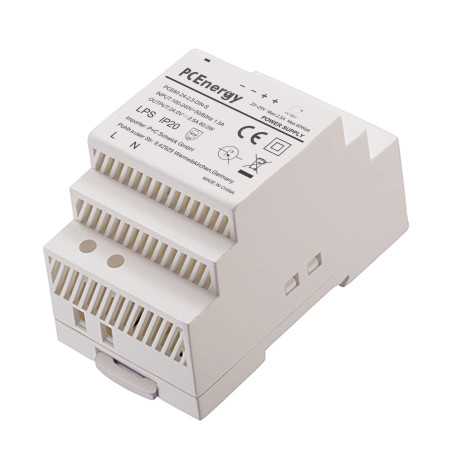

PCE60-24-2,5-DIN-S DIN rail power supply Slim 60W 24V 2,5A

PCE60-24-2,5-DIN-S DIN rail power supply; Slim; 60W; 24V; 2,5A

€12.63

€12.63 Tax excluded

check 128


Advertising [ProductAdditionalInfo]

local_shipping FREE shipping on orders over $25.00 shipped by Amazon. Details


Advertising [Product3rdColumn]

Security policy
Site hosted and secured in Eu.
Delivery policy
Packages transported with the service of Bpost, DpD, PostNl or your own carrier.
Return policy
Defective devices (not electronic components) are (according to the manufacturer's warranty) exchanged or repaired.

PCE60-24-2,5 DIN Rail Power Supply Description

The PCE60-24-2,5 DIN rail power supply can be used universally in many different application areas such as control cabinets, distribution boxes, machine and plant construction, supply and control of home electronics and many more.
Thanks to the compact design and the user-friendly click procedure, it can be easily mounted on all standard top-hat rails TH 35/7.5 and TH 35/15.
The output voltage of 24V at 2.5A (60 Watt) can be controlled thanks to the signal lamp and is also individually adjustable from 23V to 25V by turning the potentiometer (+V ADJ).
Due to the protection class II classification and the integrated overload, overcurrent, overvoltage and short-circuit protection, the safety of the user and the devices to be operated is particularly ensured.

The PCE60-24-2,5 complies with all EU safety standards.


PCE60-24-2,5 DIN Rail Power Supply Features

  • High efficiency (85%)
  • Low ripple and electrical noise
  • Protected against overload, overcurrent, overvoltage, as well as short circuits
  • Adjustable output voltage (23V - 25V)
  • Built-in signal light
  • Compact and user friendly design
  • Easy installation by click method
  • Compatible with DIN rail TH 35/7,5 and TH 35/15 (TS 35/7,5 and TS 35/15)
  • Protection class II
  • RoHS and REACH compliant
  • DIN standard compliance: EN 55032:2015; EN 55035:2017; EN IEC 61000-3-2:2019; EN 61000-3-3:2013; EN 62368-1:2014+A11:2017



PCE60-24-2,5 DIN Rail Power Supply Technical data

  • Input voltage: 100-240V 50/60 HZ alternating voltage
  • Output voltage: 24V DC (23 - 25 V adjustable voltage range)
  • Output current: 2.5A
  • Power: 60 Wattage
  • Operating temperature: -20 °C to 50 °C
  • Storage temperature: -40 °C to 85 °C
  • Relative humidity during operation: 20 - 90 %, non-condensing
  • Relative humidity during storage: 10 - 95 %
