PCE30-12-2-DIN-S DIN Rail Power Supply, Slim, 24W, 12V, 2A
Advertising [ProductAdditionalInfo]
local_shipping FREE shipping on orders over $25.00 shipped by Amazon. Details
Advertising [Product3rdColumn]
Site hosted and secured in Eu.
Packages transported with the service of Bpost, DpD, PostNl or your own carrier.
Defective devices (not electronic components) are (according to the manufacturer's warranty) exchanged or repaired.
PCE30-12-2 DIN Rail Power Supply Description
The PCE30-12-2 DIN Rail Power Supply is a universal power supply for many different applications such as control cabinets, distribution boxes, machine and plant construction, supply and control of home electronics and many more.

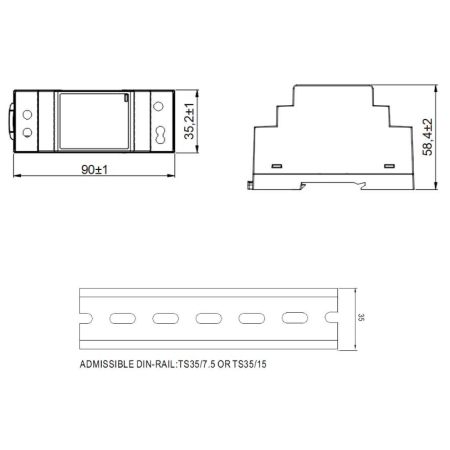

Thanks to the compact design and the user-friendly click procedure, it can be easily mounted to all standard DIN rails TH 35/7,5 and TH 35/15.
The output voltage of 12V to 2A (24 Watt) is controllable thanks to signal lamp and additionally individually adjustable from 11V to 13V by turning the potentiometer (+V ADJ).
Due to the protection class II classification and the integrated overload, overcurrent, overvoltage and short-circuit protection, the safety of the user and the devices to be operated is particularly ensured.
The PCE30-12-2 complies with all EU safety standards.
PCE30-12-2 DIN Rail Power Supply Features
- High efficiency (80%)
- Low ripple and electrical noise
- Protected against overload, overcurrent, overvoltage, as well as short circuits
- Adjustable output voltage (11V - 13V)
- Built-in signal light
- Compact and user friendly design
- Easy installation by click method
- Compatible with DIN rail TH 35/7,5 and TH 35/15 (TS 35/7,5 and TS 35/15)
- Protection class II
- RoHS and REACH compliant
- DIN standard compliant: EN 55032:2015; EN 55035:2017; EN IEC 61000-3-2:2019; EN 61000-3-3:2013; EN 62368-1:2014+A11:2017
PCE30-12-2 DIN Rail Power Supply Technical Data
- Input voltage: 100-240V 50/60 HZ alternating voltage
- Output voltage: 12V DC (11 - 13 V adjustable voltage range)
- Output current: 2A
- Power: 24 Wattage
- Operating temperature: -20 °C to 50 °C
- Storage temperature: -40 °C to 85 °C
- Relative humidity during operation: 20 - 90 %, non-condensing
- Relative humidity during storage: 10 - 95 %
