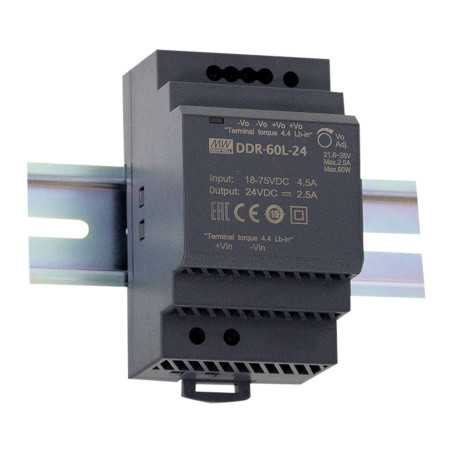

DDR-60L-24 DC/DC Converter 18-75V:24V 2.5A 60W, MEAN WELL
zoom_out_map
chevron_left chevron_right

DDR-60L-24 DC/DC Converter 18-75V:24V 2.5A 60W, MEAN WELL

DDR-60L-24 DC/DC Converter 18-75V:24V 2.5A 60W, MEAN WELL

€27.73

€27.73 Tax excluded

check 460

local_shipping FREE SHIPPING  Belgium-France-Nederland-Germany on ALL PRODUCTS  for 125 € order

Security policy
Site hosted and secured in Eu.
Delivery policy
Packages transported with the service of Bpost, DpD, PostNl or your own carrier.
Return policy
Defective devices (not electronic components) are (according to the manufacturer's warranty) exchanged or repaired.

MEAN WELL DDR-60 DC/DC Converter Series Description:

The MEAN WELL DDR-60 Series DC/DC converters are designed for DIN rail mounting and can be installed on a TS-35/7.5 or 15 DIN rail. They have a width of only 52,5mm and a wide input voltage range of 4:1. No minimum load is required for these converters, and they have a regulated output voltage of ±10%. They are cooled by free air convection and have input/output isolation of 4000V. These converters also offer protection from short circuit, overload, overvoltage, input reverse polarity, and input under voltage. They meet UL 62368-1 and IEC 62368-1 safety standards and EN 55032 Class A EMC standards, making them a great choice for many different applications.

MEAN WELL DDR-60 DC/DC Converter Series Features:

  • for DIN rail mounting
  • can be installed on DIN rail TS-35/7.5 or 15
  • width only 52,5mm
  • wide input voltage range 4:1
  • no minimum load required
  • regulated output voltage (±10%)
  • cooling by free air convection
  • input/output isolation 4000V
  • protection: short circuit, overload, overvoltage, input reverse polarity, input under voltage protection
  • Safety standard: UL 62368-1, IEC 62368-1
  • EMC Standards: EN 55032 Class A
  • 3 years manufacturer warranty
For detailed technical specifications, please check the data sheet in the "downloads" section.
MEAN WELL
DDR-60L-24
460 Items
4021087050647
DDR-60L-24
