UNI-T UTD2102CL+ - High quality digital oscilloscope with great price-performance ratio
The UNI-T UTD2102CL+ is a powerful 2-channel oscilloscope, which is very suitable for electronics laboratories and schools due to an excellent price-performance ratio . With a bandwidth of 100 MHz and a sampling rate of 500 MSa/s, the UTD2102CL+ delivers accurate measurement results. In addition, the USB interface allows measurement results to be saved.
Functions at a glance
The oscilloscope has many functions such as XY mode, which allows you to measure the phase difference between two signals of the same frequency. With the ZOOM function, you can further analyse the details of the observed waveform.
Furthermore, it has a standard square wave output of 10 Hz, 100 Hz, 1 kHz and 10 kHz, which is convenient when you need a reference source. The instrument is equally capable of performing mathematical functions such as addition, subtraction, multiplication and division, as well as waveform calculations.

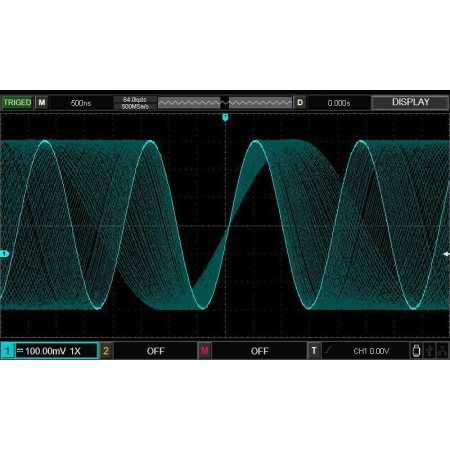

Get accurate results with automatic parameter measurement and five groups of customizable parameter displays. The degree display shows anomalies in the changing waveform and captures infrequently occurring signals. The alternative trigger can be effectively applied to trigger signals without frequency correlation.
Technical data
The UTD2102CL+ has a memory depth of 64 Kpts and can display waveforms at an acquisition rate of 5,000 wfms/s. It has edge, pulse and alternate triggers and supports a vertical scale of 1 mV/div - 20 V/div and a horizontal scale of 2 ns/div - 50 s/div. Display is via a 7" 800×480 TFT LCD display.
- Bandwidth: 100 MHz
- Number of channels: 2
- Sampling rate: 500 MSa/s
- Memory depth: 64 Kpts
- Waveform capture rate: ≥ 5,000 wfms/s
- Trigger types: edge, pulse, alternate
- Vertical scale: 1 mV/div - 20 V/div
- Horizontal scale: 2 ns/div - 50 s/div
- Display: 7" 800x480 TFT LCD
- Weight: 2.2 kg
- Dimensions (WxHxD): 306 x 147 x 122 mm
With the UNI-T UTD2102CL+ you get an oscilloscope with a high bandwidth and a large sampling rate, which offers numerous functions and excellent performance at an affordable price. The device allows you to conveniently record signals and obtain precise measurement results. The device is an excellent choice for beginners and professionals alike.
