UPO2102 Oscilloscope, 2 channels, 100 MHz

UPO2102 Oscilloscope Description

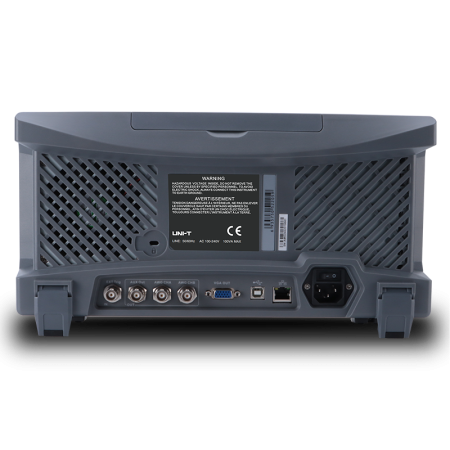

The UPO2102 is a professional digital oscilloscope with the innovative Ultra Phosphor technology of UNI-T's UPO2000 series. It offers 2 channels at a maximum sampling rate of 2 GSa/s to a 100 MHz bandwidth. The memory depth is 56Mpts, which allows longer signal recordings without losing the waveform. The smallest adjustable vertical measurement range is 1mV/div, which in combination with the very fast signal acquisition rate of 1,000,000 wfms/s and the high sensitivity of the device allows to observe even the smallest jitter and glitches. The 8-inch capacitive TFT LCD display shows the measurements in a resolution of 800 x 480 pixels. With the touch function, the Oscilloscope can be controlled very comfortably using gestures. The device offers a LAN port for remote control via a network with support for web access, as well as two USB ports as an interface for connecting to a computer, and for connecting a storage medium for recording the measurements. Additionally, EXT Trig, AUX Out (Trig Out - Pass/Fail), and VGA connectors are built in.

The UPO2102 is a very good choice for professional applications because its wide range of functions enables particularly precise and fast measurements.

The UPO2102 complies with all EU safety standards

UPO2102 Oscilloscope Features

• 100 MHz bandwidth

• 2 channels

• 2GSa/s sampling rate

• Maximum memory depth(single): 56Mpts

• Signal acquisition rate: up to 1,000,000 wfms/s

• Time base range: 1ns/div ~ 1000s/div

• Input impedance: 1 MΩ ± 2 % || 18 pF ± 3 pF

• Vertical measurement range: 1 mV/div ~ 20 V/div

• Waveform recording up to 120,000 frames

• Gain accuracy: <5mV：±3%，≥5mV：±2%.

• 8-inch capacitive TFT LCD display with 800 x 480 pixel resolution.

• USB interfaces for connection to a computer or storage media

• LAN port for remote control via network or web access

• Frequency counter : 7 bits

• Trigger : Edge, Window, Runt, Time Out, Nth Edge, Delay, Duration, Setup / Hold, Pulse, Over Amplitude Pulse,

• Slope, Video, Pattern

• Protocol Trigger and Decoding: RS232, I2C, SPI, CAN, CAN-FD, LIN, FlexRay

• Mathematical operations: A+B, A-B, AxB, A / B, FFT, Filter, Logic operation, Editable Advanced

• Automated measurements of 36 different waveform parameters:
  Max, Min, High, Low, Ampl, Pk- Pk, Middle, Mean, Cycmean, RMS, CycRMS, AC RMS, Period, Freq, Rise, Fall, RiseDelay, Fall, Delay, +Width, -Width, FRFR, FRFF, FFFR, FFFF, FRLF, FRLR, FFLR, FFLF, +Duty, -Duty, Area, CycArea, Oversht, Presht, Phase, Pulse

• Scope of delivery: Instrument, 2x UT-P04 test leads, USB connection cable, user manual
