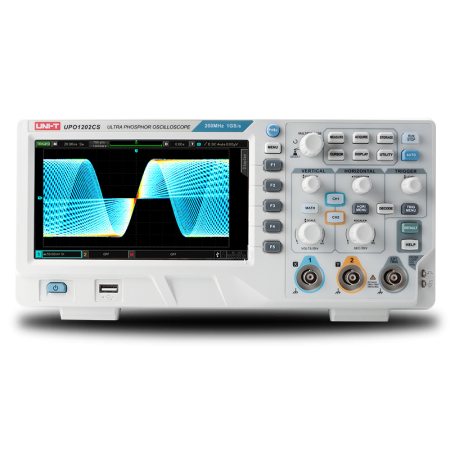

UPO1202CS Oscilloscope, 2 channels, 200MHz
Advertising [ProductAdditionalInfo]
local_shipping FREE shipping on orders over $25.00 shipped by Amazon. Details
Advertising [Product3rdColumn]
Site hosted and secured in Eu.
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
UPO1202CS Oscilloscope Description
The UPO1202CS is a digital oscilloscope with the innovative Ultra Phosphor technology of UNI-T's UPO1000CS series. It offers 2 channels at a maximum sampling rate of 1 GSa/s to a 200 MHz bandwidth. The memory depth is 56Mpts, which allows longer signal recordings without losing the waveform. The smallest adjustable vertical measurement range is 1mV/div, which in conjunction with the fast signal acquisition rate of 500,000 wfms/s and the high sensitivity of the device allows jitter and glitches to be observed. The 8-inch TFT LCD display shows measurements in 800 x 480 pixel resolution. The device offers a LAN port for remote control via a network with support via web access, as well as two USB ports as interface for connection to a computer, as well as for connection of a storage medium for recording the measurements. Additionally, EXT Trig and AUX Out (Trig Out - Pass/Fail) connectors are built in.
The UPO1202CS is a very good choice for teachers and students, as well as professional users, as its wide range of functions enables precise measurements at an attractive price.
The UPO1202CS complies with all EU safety standards.
UPO1202CS Oscilloscope Features
-
200 MHz bandwidth
-
2 channels
-
1GSa/s sampling rate
-
Maximum memory depth(single): 56Mpts
-
Signal acquisition rate: 500,000 wfms/s
-
Time base range: 1 ns/div - 1000 s/div
-
Input impedance: 1 MΩ ± 2 % || 16 pF± 3 pF
-
Vertical measurement range: 1 mV/div ~ 20 V/div
-
Waveform recording up to 100,000 frames
-
Gain accuracy: <10mV: ±4.0%，≥10mV: ±3.0%
-
8-inch TFT LCD display with 800 x 480 pixel resolution.
-
USB interfaces for connection to a computer or storage media
-
LAN port for remote control via network or web access
-
Frequency counter: 7 bits
-
Maximum 5 simultaneous measurement displays
-
Trigger : Edge, Window, Runt, Time Out, Nth Edge, Delay, Duration, Setup / Hold, Pulse, Overshoot, Slope, Video, Pattern
-
Protocol Trigger and Decoding: RS232, I2C, SPI, CAN, CAN-FD, LIN, FlexRay
-
Mathematical operations: A+B, A-B, AxB, A / B, FFT, Filter, Logic operation, Editable Advanced
Automated measurements of 36 different waveform parameters: Max, Min, High, Low, ampl, Pk- Pk, Middle, Mean, Cycmean, RMS, CycRMS, AC RMS, Period, Freq, Rise, Fall, RiseDelay, FallDelay, +Width, -Width, FRFR, FRFF, FFFR, FFFF, FRLF, FRLR, FFLR, FFLF, +Duty, -Duty, Area, CycArea, Oversht, Presht, Phase, Pulse -
Scope of delivery: Instrument, 2x UT-P05 test leads, USB connection cable, user manual
