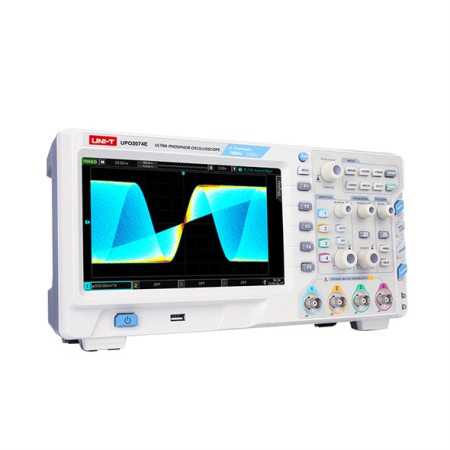

UPO2074E Oscilloscope, 4 channels, 70MHz
Advertising [ProductAdditionalInfo]
local_shipping FREE shipping on orders over $25.00 shipped by Amazon. Details
Advertising [Product3rdColumn]
Site hosted and secured in Eu.
Packages transported with the service of Bpost, DpD, PostNl or your own carrier.
Defective devices (not electronic components) are (according to the manufacturer's warranty) exchanged or repaired.
UPO2074E Oscilloscope Description
The UPO2074E is a digital oscilloscope with the innovative Ultra Phosphor technology of UNI-T's UPO2000E series. It offers 4 channels at a maximum sampling rate of 1 GSa/s to a 70 MHz bandwidth. The memory depth is 56Mpts, which allows longer signal recordings without losing the waveform. The smallest adjustable vertical measurement range is 1mV/div, which in combination with the signal acquisition rate of 80,000 wfms/s and the high sensitivity of the device allows to observe even small jitters and glitches. The 8-inch TFT LCD display shows the measurements in a resolution of 800 x 480 pixels. The device offers a LAN port for remote control over a network, as well as two USB ports as an interface to connect to a computer, as well as to connect a storage device to record the measurements.
The UPO2074E is a very good choice for teachers and students, as well as professional users, as its wide range of functions allows precise measurements at an attractive price.
The UPO2074E complies with all EU safety standards.
UPO2074E Oscilloscope Features
- 70 MHz bandwidth
- 4 channels
- 1GSa/s sampling rate
- Maximum memory depth(single): 56Mpts
- Signal acquisition rate: 80,000 wfms/s
- Time base range: 5ns/div ~ 50s/div
- Input impedance: 1 MΩ ± 2 % || 20 pF ± 3 pF
- Vertical measurement range: 1 mV/div ~ 20 V/div
- Waveform recording up to 65,000 frames
- Gain accuracy: ≤+4%.
- 8-inch TFT LCD display with 800 x 480 pixel resolution.
- USB interfaces for connection to a computer or storage media
- LAN port for remote control via network
- Maximum 5 simultaneous measurement displays
- Frequency counter : 6 bits
- Trigger : Edge, Window, Runt, Time Out, Nth Edge, Delay, Duration, Setup / Hold, Pulse Width, Slope, Video, Pattern, RS232 / UART, I2C, SPI
- Mathematical Operations: A+B, A-B, AxB, A / B, FFT, Filter, Logic operation, Editable Advanced
Automated measurements: Max, Min, High, Low, Middle, Pk-Pk, Ample, Mean, Cycle Mean, RMS, Cycle RMS, Cycle Area, OverShoot, PreShoot, Period, Freq, Rise, Fall, + Width, -Width, + Duty, -Duty, RiseDelay, FallDelay, Phase, FRR, FRF, FFR, FFF, LRF, LRR, LFR, LFF - Scope of delivery: Instrument, 4x UT-P04 test leads, UT-D14 USB connection cable, user manual
