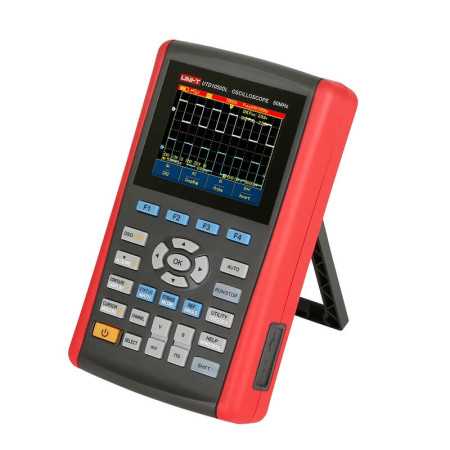

UTD1050DL Digital Oscilloscope, 50 MHz, 2 channels, portable
Advertising [ProductAdditionalInfo]
local_shipping FREE shipping on orders over $25.00 shipped by Amazon. Details
Advertising [Product3rdColumn]
Site hosted and secured in Eu.
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
UNI-T UTD1050DL Digital Oscilloscope Description
The UTD1050DL is a high quality, portable digital storage oscilloscope, which combines the functionality of a 2 channel digital oscilloscope with an analog bandwidth of 50 MHz and a sampling rate of 250 MS/s with that of a digital multimeter. The instrument can be operated with the built-in rechargeable battery or with a power supply unit. Due to the wide range of functions as well as the attractive price, the UTD1050DL digital oscilloscope is very popular among engineers and other professional users.
The UT1050DL complies with all EU safety standards.
UNI-T UTD1050DL Digital Oscilloscope Features
- 2 channels
- 50 MHz analog bandwidth, sampling rate 250 MS/s (real time)
- Auto setup and auto scale functions, making instrument setup a breeze
- Extensive display and analysis functions for signal evaluation; Isolated USB interface for further evaluation of data on a computer
- Cursor control and evaluation functions
- High measurement resolution (up to 20 V/div)
- 3.5" LCD color screen with a resolution of 320 x 240 pixels; screen can be switched to b/w display
- Various triggering options: Edge, pulse width, video, slope
- Screen image (also multimeter) can be stored (memory function)
- Signal waveforms can be recorded and played back using a recorder function
- Digital multimeter with automatic range selection (Auto Range) for AC/DC voltage measurement up to 400 V, AC/DC current measurement up to 6 A, resistance measurement up to 40 MOhm, capacitance up to 100 µ
- Other functions multimeter: Continuity test, diode test, data hold function, relative value measurement
- Power Supply and battery operation possible (integrated, exchangeable LiIon battery for up to 8 h operating time)
UNI-T UTD1050DL Digital Oscilloscope Technical Data
Oscilloscope:
- Channels: 2
- Bandwidth: 50 MHz
- Sampling rate: 250 MS/s real time
- Rise time: 7 ns
- Memory depth: 12 kpts
- Vertical sensitivity: 5 mV/div ~ 20 V/div
- Horizontal time base: 5 ns/div ~ 50 s/div
- Memory form: bitmap, setup, waveform
- Trigger mode: edge, pulse, video, slope
- Interface: Mini-USB
Digital Multimeter:
- Display: 4000 counters
- DC voltage: 400mV / 4V / 40V /400V ±(1%+ 5)
- AC voltage: 400mV / 4V / 40V /400V ±(1.2%+ 5)
- DC current: 400µA / 4000µA ±(1.2%+ 5) 40mA / 4000mA ±(1%+ 5) 6A ±(2.5%+ 5)
- AC current: 400µA / 4000µA ±(2%+ 5) 40mA / 4000mA ±(1.5%+ 5) 6A ±(2.5%+ 5)
- Resistance: 400 Ohm / 4 kOhm / 40 kOhm / 400 kOhm / 4 MOhm ±(1,2%+ 5) 40 MOhm ±(1,5%+ 5)
- Capacitance: 51.2nF / 512nF / 5.12µF / 51.2µF / 100µF ±(3%+5)
General Data & Scope Of Delivery
- Power supply: 100-240V 50/60 Hz, integrated battery pack
- LCD display: 3.5" full color display (320x240 pixels)
- Scope of delivery: Oscilloscope, test leads, 2 probes (1:1 / 10:1), voltage/current converter (40mA, 400mA), voltage/current converter (4A, 6A), power cord, power supply unit, battery pack, USB cable, transport/storage bag, operating manual
