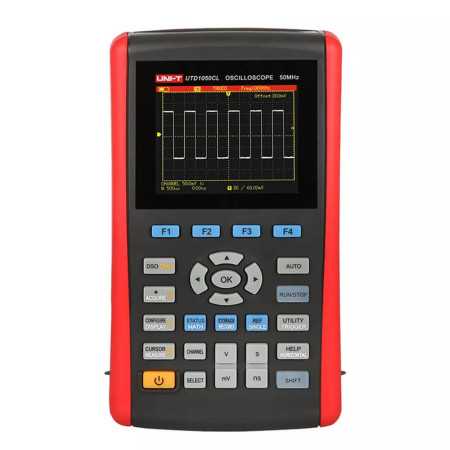

UTD1050CL Digital Oscilloscope, 50 MHz, 1 channel, portable

UTD1050CL Digital Oscilloscope, 50 MHz, 1 channel, portable

€270.28

€270.28 Tax excluded


Advertising [ProductAdditionalInfo]

local_shipping FREE shipping on orders over $25.00 shipped by Amazon. Details


Advertising [Product3rdColumn]

Security policy
Site hosted and secured in Eu.
Delivery policy
Packages transported with the service of Bpost, DpD, PostNl or your own carrier.
Return policy
Defective devices (not electronic components) are (according to the manufacturer's warranty) exchanged or repaired.

UNI-T UTD1050CL Digital Oscilloscope Description

The UTD1050CL is a high quality, portable digital storage oscilloscope that combines the functionality of a 1 channel digital oscilloscope with an analog bandwidth of 50 MHz and a sampling rate of 200 MS/s with that of a digital multimeter. The instrument can be operated with the built-in rechargeable battery or with a power supply unit. Due to the wide range of functions as well as the attractive price, the UTD1050CL digital oscilloscope is very popular among engineers and other professional users.
The UT1050CL complies with all EU safety standards.

UNI-T UTD1050CL Digital Oscilloscope Features

  • 1 channel
  • 50 MHz analog bandwidth, sampling rate 200 MS/s (real time)
  • Auto setup and auto scale functions, making instrument setup a breeze
  • Extensive display and analysis functions for signal evaluation; Isolated USB interface for further evaluation of data on a computer
  • Cursor control and evaluation functions
  • High measurement resolution (up to 20 V/div)
  • 3.5" LCD color screen with a resolution of 320 x 240 pixels; screen can be switched to b/w display
  • Various triggering options: Edge, pulse width, video, slope
  • Screen image (also multimeter) can be stored (memory function)
  • Signal waveforms can be recorded and played back using a recorder function
  • Digital multimeter with automatic range selection (Auto Range) for AC/DC voltage measurement up to 400 V, AC/DC current measurement up to 6 A, resistance measurement up to 40 MOhm, capacitance up to 100 µ
  • Other functions multimeter: Continuity test, diode test, data hold function, relative value measurement
  • Power supply and battery operation possible (integrated, exchangeable LiIon battery for up to 8 h operating time)

UNI-T UTD1050CL Digital Oscilloscope Technical Data

Oscilloscope:

  • Channel: 1
  • Bandwidth: 50 MHz
  • Sampling rate: 200 MS/s real time
  • Rise time: 7 ns
  • Memory depth: 12 kpts
  • Vertical sensitivity: 5 mV/div ~ 20 V/div
  • Horizontal time base: 5 ns/div ~ 50 s/div
  • Memory form: bitmap, setup, waveform
  • Trigger mode: edge, pulse, video, slope
  • Interface: Mini-USB

Digital Multimeter:

  • Display: 4000 counters
  • DC voltage: 400mV / 4V / 40V /400V ±(1%+ 5)
  • AC voltage: 400mV / 4V / 40V /400V ±(1.2%+ 5)
  • DC current: 400µA / 4000µA ±(1.2%+ 5) 40mA / 4000mA ±(1%+ 5) 6A ±(2.5%+ 5)
  • AC current: 400µA / 4000µA ±(2%+ 5) 40mA / 4000mA ±(1.5%+ 5) 6A ±(2.5%+ 5)
  • Resistance: 400 Ohm / 4 kOhm / 40 kOhm / 400 kOhm / 4 MOhm ±(1,2%+ 5) 40 MOhm ±(1,5%+ 5)
  • Capacitance: 51.2nF / 512nF / 5.12µF / 51.2µF / 100µF ±(3%+5)

General Data & Scope Of Delivery

  • Power supply: 100-240V 50/60 Hz, integrated battery pack
  • LCD display: 3.5" full color display (320x240 pixels)
  • Scope of delivery: Oscilloscope, test leads, 1 probe(1:1 / 10:1), 10A current divider, power cord, power supply, battery pack, USB cable, carrying/storage bag, user manual
UNI-T
UTD1050CL
6935750590096
UTD1050CL
