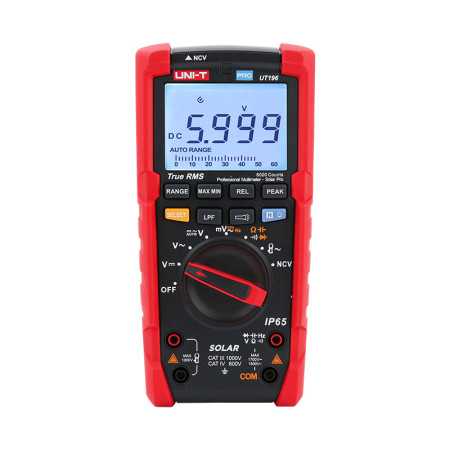

UT196 Solar Multimeter
The UT196 Solar Multimeter is a versatile meter perfect for solar applications such as installing and maintaining a solar system. It has been specifically tested for safe use in CAT III 1000 V and CAT IV 600 V environments to provide you with the highest level of safety.
Precise measurements
The UT196 features a low-pass filter function that allows you to isolate high-frequency noise and make measurements as accurately as possible. It can measure up to 1700 V DC and 1500 V AC voltages and offers a resolution of 6000 counts. In addition, it can make capacitance measurements and has an acoustic continuity tester and a diode test function for efficient fault diagnosis.
Rugged and Waterproof
The UT196 is both rugged and shockproof, withstanding a 2-meter drop. It's IP65 waterproof, so you can use it outdoors without worry, even in bad weather or dusty environments. With the built-in flashlight, you'll always have enough light to take your measurements even in low-light conditions.
Comfort and ease of use
The UT196 features an automatic shut-off function that extends battery life and ensures the unit is not left on unnecessarily. The powerful backlit LCD display with bar graph provides clear and easy reading of measurement results, even in bright sunlight or dark work environments.
The UT196 has a backlit display with bar graph.
The UT196 Solar Multimeter provides you with a reliable and accurate meter for your solar applications. It offers a variety of features to make your work more efficient and accurate. Invest in quality and reliability for your solar projects.
Technical Data:
- Voltage measuring range DC: 600 mV, 6 V, 60 V, 600 V, 1700 V
- Voltage measuring range AC: 600 mV, 6 V, 60 V, 600 V, 1500 V
- Resistance: 600 Ohm, 6 kOhm, 60 kOhm, 600 kOhm, 6 MOhm, 60 MOhm
- Capacitance: 60 nF, 600 nF, 6 µF, 60 µF, 600 µF, 6 mF, 60 mF
- Frequency: 60 Hz...1 MHz
- Acoustic continuity tester (< 50 Ohm)
- Diode test 3 V
- Protection class: IP65
- Safety: CAT III 1000 V, CAT IV 600 V
- Power supply: 9 V block battery
- Dimensions: 195x95x58 mm
- Weight: 0,485 kg
