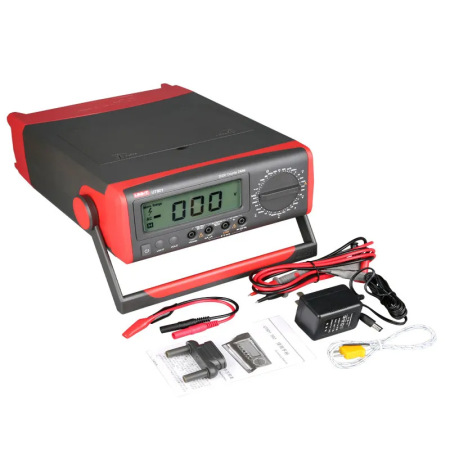

UT801 Bench-Top Multimeter

UT801 Bench-Top Multimeter

€0.00 Tax included

€0.00 Tax excluded


Advertising [ProductAdditionalInfo]

local_shipping FREE shipping on orders over $25.00 shipped by Amazon. Details


Advertising [Product3rdColumn]

Security policy
Site hosted and secured in Eu.
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)

UT801 Bench Multimeter

The UT801 Benchtop Multimeter is a versatile Digital Multimeter (DMM) that is ideal for various hobbyist applications. With a wide measurement range and many measurement functions, it gives you the ability to measure a variety of electrical quantities.

Easy Operation

The UT801 bench multimeter is very easy to operate thanks to the convenient rotary knob. You can intuitively set the desired measurement range and quickly perform your measurements. The large backlit LCD display gives you a clear and easy-to-read readout of your readings.

Comprehensive Measurement Capabilities

The UT801 bench multimeter allows you to measure DC and AC voltage, DC and AC current, resistance, frequency, capacitance, temperature, as well as test transistors, diodes and continuity. With a display of 2000 counts, you can get precise readings for your projects.

The UT801 bench multimeter is a reliable and user-friendly tool that provides great support for your hobby electrical measurements. Order the UT801 bench multimeter now and make your electrical measurements a breeze!

Measurement Ranges:

  • Counts: 2000
  • DC voltage: 200 mV/2 V/20 V/200 V/1000 V ±(0.5%+2)
  • AC voltage: 2 V/20 V/200 V/750 V ±(0.8%+3)
  • DC current: 200 µA/2 mA/20 mA/200 mA/10 A ±(0.8%+2)
  • AC current: 2 mA/20 mA/200 mA/10 A ±(1%+3)
  • Resistance: 200 Ohm/2 kOhm/20 kOhm/200 kOhm/2 MOhm/20 MOhm ±(0.8%+3)
  • Capacitance: 20 nF/2 µF/200 mF ±(4%+3)
  • Frequency: 2 kHz/200 kHz ±(1.5%+5)
  • Temperature: -40°C ~ 1000°C; ±(1.2%+3)
  • Diode test
  • Circuit continuity test
  • Transistor hFE test

Additional functions:

  • Manual & change of measuring ranges
  • Low battery indicator
  • Freeze/save last readings
  • Backlit LCD screen
  • Counts: 2000

General features

  • Voltage measurement input impedance: approximately 10 MOhm
  • Voltage supply: AC 220 V/50 Hz or 6x 1.5 V (R14)
  • Display: 108 x 34.5 mm
  • Dimensions: 300 x 245 x 105 mm
  • Weight: 1.65 g
  • Accessories: test leads, short leads with alligator clips, temperature sensor, test socket, power adapter
UNI-T
UT801
5901436774587
UT801
