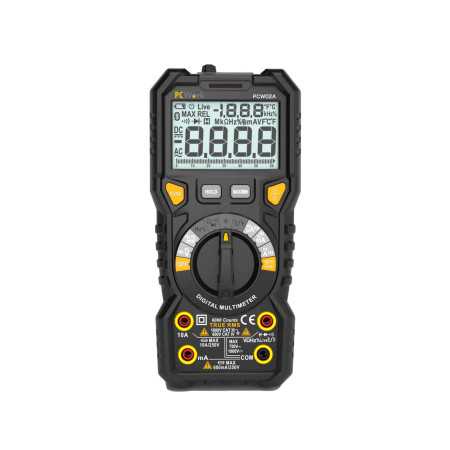

PCW02A Digital Multimeter True RMS Description
The PCW02A True RMS digital multimeter is a versatile and reliable tool that is perfect for professionals and ambitious hobbyists. It can measure AC/DC voltage, current, and resistance, as well as frequency, duty ratio, and temperature. The Auto Range feature makes it easy to chose the correct measurement range, while the 6000 counts display provides precise read-outs. The CAT III 1000V and CAT IV 600V rating make this multimeter suitable for use in a variety of applications. The data hold function and Max / Min function are additional features for temporary data storage that will make daily work easier. Another great feature of the device, especially for beginners, are the illuminated input sockets. Here the device indicates which input sockets to use for the chosen measurement function. This way it is almost impossible to connect the measurement leads to the wrong socket and it will prevent the device from damage. The PCW02A Multimeter also features a LED work light and a 2.9” bi-color backlight LCD display with a bargraph function. Therefore it is perfectly suited for working in dark environments. In addition, the display will turn orange, in order to warn the user when measuring high voltage or current. The PCW02A is also equipped with a robust rubber housing, which protects the device from damage.
The PCW02A complies with all EU safety standards and has a CAT III 1000V/CAT IV 600V rating.
PCW02A Digital Multimeter True RMS Features
- CAT III 1000V, CAT IV 600V
- 6000 counts
- True RMS
- Auto Range function
- AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty ratio, and temperature measurement
- NCV (non-contact voltage), live line, continuity, and diode test
- Double ceramic fuses & PTC thermistors
- 2.9” bi-color backlight LCD display with bargraph function (display will turn orange to warn the user when measuring high voltage/current)
- Data hold with Max/Min function
- LED illuminated input sockets - the device shows you which input socket to use according to the measurement function chosen. Perfect for beginners to avoid damage to the device.
- LED work light
- Bracket at the back of device
- Great packaging design and manual with pictures in various languages available
- Includes batteries & high-quality test leads
PCW02A True RMS Digital Multimeter Data
|
DC Voltage: |
600mV/6V/60V/600V/1000V ±(0.5%+3) |
|
AC Voltage: |
600mV/6V/60V/600V/750V ±(0.8%+5) |
|
DC Current: |
600uA/6000uA/60mA/600mA ±(0.8%+3); 10A ±(1.2%+3) |
|
AC Current: |
600uA/6000uA/60mA/600mA ±(1.0%+3); 10A ±(1.5%+3) |
|
Resistence: |
600Ω/6kΩ/60kΩ/600kΩ ±(1.0%+3); 6MΩ/60MΩ ±(1.5%+3) |
|
Capacity: |
10nF/100nF/1μF/10μF/100μF/1mF ±(4.0%+3); 10mF/100mF ±(5.0%+5) |
|
Frequency: |
10Hz/100Hz/1kHz/10kHz/100kHz/1MHz ±(1.0%+3); 10MHz ±(3.0%+3) |
|
Duty: |
1%~99% ±(3.0%+3) |
|
Temperature (°C): |
-20°C~1000°C ±(1.0%+3) |
|
Power Supply: |
2*1.5V AA Batteries; Auto Power-Off function |
|
Size: |
188*88*58mm |
|
Weight: |
350g |
|
Standards: |
CE; EN61010-1,-2-030,-2-033; EN61326-1, EN61000-3-2,-3-3; ROHS: 2011/65/EU and amendment 2015/863/EU; REACH (EC) No. 1907/2006 |
