MLS WS 100/2.5 schwarz / black

MLS WS 100/2.5 schwarz / black

€0.00 Tax included

€0.00 Tax excluded


Advertising [ProductAdditionalInfo]

local_shipping FREE shipping on orders over $25.00 shipped by Amazon. Details


Advertising [Product3rdColumn]

Security policy
Site hosted and secured in Eu.
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)

MLS WS 100/2.5 schwarz / black (934088100)

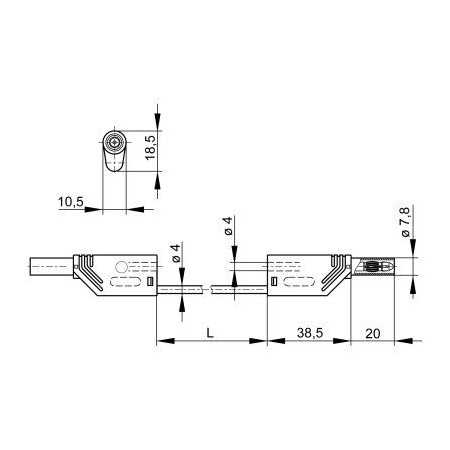

Safety measuring lead to IEC 61010 standard, at either end 4 mm diameter safety connector with onward connection capability (4mm socket). Nickel-plated copper beryllium contact spring. Highly flexible, double insulated stranded lead, shatter-proof grip sleeve and lead. Built in color indicator for easy indentification of insulation damages.



Technical data


rated voltage AC/DC 1000 V
measurement cat. acc. to IEC 61010 CAT II
rated current
(consider derating curve)		 32 A
material plug brass, nickel plated
housing material PA
temperature range acc. To IEC61010(1) -15 °C to +70 °C
inflammability class acc. to UL 94
(only valid for basic material of housing)		 V-2
cable length 100 cm
conductor size 2,5 mm²
cable material PVC
SKS Hirschmann
934088100
4250260202980
934088100
