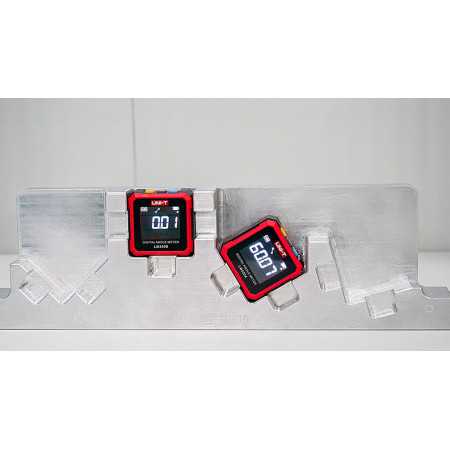

LM320A Digital Angle Meter
Versatile measuring functions
The LM320A digital Angle Meter offers you the option of relative and absolute measurement as well as inclination conversion. Thanks to its 360° measurement (4x90°), you can carry out precise Angle Meter measurements in various situations.
The Angle Meter also has a practical data memory function (Data Hold), which allows you to record measured values for later reference. This makes work easier, especially when accurate results are important.
Compact design and intelligent functions
Thanks to its compact and lightweight design, the LM320A is portable and easy to handle. The innovative design enables precise measurements, while the magnetic base on the top and bottom allows it to be attached to various surfaces.
The digital Angle Meter is powered by a rechargeable 3.7V lithium battery, and the included USB-C cable allows for convenient charging. The auto-rotating screen with backlight ensures optimal display of measurement results in different lighting conditions.
Scope of delivery and other extras
The LM320A comes with a USB-C cable and operating instructions to ensure an easy start and smooth use. Precision and ease of use are guaranteed with this modern digital Angle Meter.
The LM320A complies with all EU safety standards.
UNI-T LM320A Angle Meter Features
- Relative / absolute measurement
- Inclination conversion function
- 360°comprehensive measurement (4x90°)
- Data storage function (data hold)
- Compact design; portable and lightweight
- Innovative laser design, enabling precise measurements
- With magnetic base on the top and bottom side
- 3.7V rechargeable lithium battery
- Auto-rotating screen with backlight
- Included in delivery: USB-C cable, instruction manual
UNI-T LM320A Angle Meter Technical Specifications
|
Specifications |
LM320A |
LM320B |
|
Measurement range |
4×90° |
|
|
Accuracy |
± 0.2° |
|
|
Resolution |
0.01° |
|
|
Display |
EBTN |
|
|
Laser indication |
Two-side lasers |
|
|
Battery Capacity |
3.7V lithium battery (300mah) |
|
|
Charging |
Type C charging Interface |
|
|
Working Time |
2h |
|
|
Magnet base |
Two-side magnets |
Four-side magnets |
|
Auto power off |
Yes |
|
|
Relative/Absolute Measurement |
Yes |
|
|
Low battery indication |
Yes |
|
|
General Characteristics |
||
|
Power |
3.7V lithium battery (300mah) |
|
|
Product color |
Black and red |
|
|
Product net weight |
106g |
|
|
Product size |
60×60×30mm |
|
|
Standard accessories |
USB-C Cable, Manual |
|
