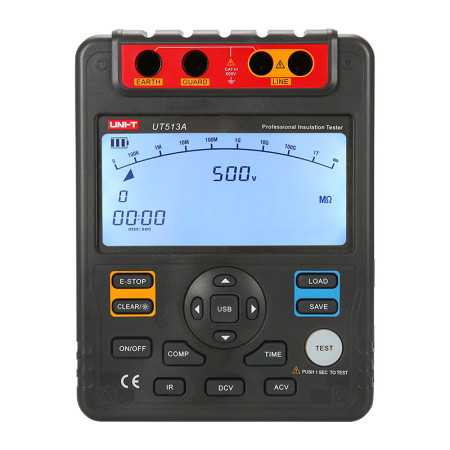

UT513A insulation resistance meter

Functions and areas of application

The UT513A insulation resistance meter from the UT510 series is ideal for measuring the insulation resistance of large transformers, generators, high-voltage motors and similar devices. The UT510 series also includes the ability to measure PI, DAR and other important specifications. The acquired measurement data can be analyzed using PC software.

Features and characteristics

The UT513A insulation resistance meter is equipped with a large 9999 display and a 30-segment analog bar graph to ensure user-friendly display of measurement results. It offers PI/DAR measurements, comparison, upper and lower limit functions and a continuous measurement mode. Additional functions such as automatic switch-off, 18-group data memory and backlighting optimize the practical use of the device. Furthermore, the UT513A has an automatic current discharge and a high voltage alarm at the output as well as a time measurement mode for automatic measurements within 15 minutes. A low battery and out-of-range indicator provides the user with additional safety and information about the device status.

The UT513A can generate a test voltage of up to 5 kV and is therefore capable of reliably handling even demanding test tasks. Its versatility, robustness and user-friendliness make this measuring device an indispensable tool for professional users who need to carry out precise insulation resistance measurements.



Specifications of UT510 Series Insulation Resistance Testers


Specifications Range UT511 UT512 UT513A
Insulation resistance (Ω) Test voltages 100V~1000V 0%~10%
500V~2500V   0%~20%
500V~5000V     0%~20%
100V 0.1MΩ~500MΩ ±(3%+5)
250V 0.5MΩ~2GΩ ±(3%+5)
500V 1MΩ~4GΩ ±(3%+5)
0.5MΩ~5GΩ   ±(3%+5)
0.5MΩ~20GΩ     ±(3%+5)
1000V 2MΩ~10GΩ ±(3%+5) ±(3%+5)
1MΩ~40GΩ     ±(3%+5)
1500V 5MΩ~20GΩ   ±(3%+5)
2500V 2.5MΩ~100GΩ     ±(3%+5)
10MΩ~100GΩ   ±(3%+5)
5000V 5MΩ~1000GΩ     ±(3%+5)
DC voltage (V) 1000V ±(2%+3)
600V   ±(2%+5) ±(2%+3)
AC voltage (V) 750V ±(2%+3)
600V   ±(2%+5) ±(2%+3)
Short-circuit current   <2mA <1.8mA >3mA
Low resistance (Ω) 0.1Ω~999.9Ω ±(1%+3)
Features
Auto range/Auto power off   √ √ √
Test voltage secondary display       √
Low battery indication   √ √ √
Data storage   18 18 18
Comparison measurement   √ √ √
Polarization index (PI)   √ √ √
Dielectric absorption ratio (DAR)   √ √ √
USB interface     √ √
Analog bar graph   30 30 30
LCD backlight   √ √ √
Over-range warning   √ √ √
High voltage indication   √ √ √
Timing measurement Around 30 minutes √
Around 15 minutes   √ √
Meets IEC 61557 UT513A: 61557-1:2007; 61557-2:2007
General Characteristics
Power 1.5V battery (LR14) x 8
Display 123mm x 58mm
Product color Red and grey
Product net weight UT511: 1.2kg; UT512: 1.8kg; UT513A: 2kg
Product size 202mm x 155mm x 94mm
Standard accessories 2pcs of one plug test lead to one alligator clip (black and green), 1pcs of two plugs test lead to one alligator clip (red), batteries, USB  cable (UT512/UT513A), PC software CD (UT512/UT513A), power adaptor (UT512/UT513A)
Standard individual packing Gift box, tool box, English manual
UNI-T
UT513A
4 Items
6935750505137
UT513A
