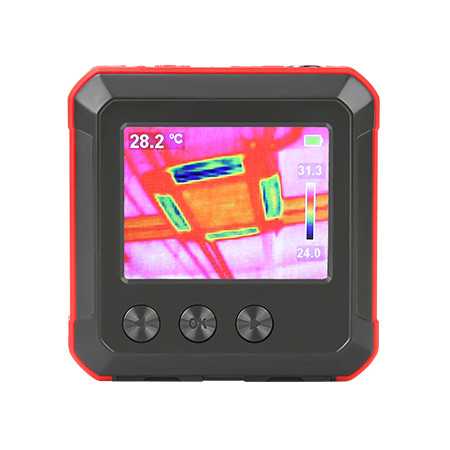

UTi80P Thermal Imaging Camera, pocket-size, portable

UTi80P Thermal Imaging Camera, pocket-size, portable

€228.56

€228.56 Tax excluded


Advertising [ProductAdditionalInfo]

local_shipping FREE shipping on orders over $25.00 shipped by Amazon. Details


Advertising [Product3rdColumn]

Security policy
Site hosted and secured in Eu.
Delivery policy
Packages transported with the service of Bpost, DpD, PostNl or your own carrier.
Return policy
Defective devices (not electronic components) are (according to the manufacturer's warranty) exchanged or repaired.

UNI-T UTi80P Thermal Imaging Camera Description

The UTi80P is the latest portable infrared thermal imaging camera from the well-known quality manufacturer Uni-Trend with a resolution of 80 × 60. Thanks to the compact design, the camera can be taken anywhere, making the device perfect for mobile use. Furthermore, users have the possibility to measure temperatures or temperature differences of objects or devices during the day or at night. In addition, the UTi80P is equipped with a USB interface, which allows stored images to be analyzed on a computer using software. The camera can also be charged on the computer.

All in all, the UTi80P is a powerful device in a compact and portable package that perfectly meets the needs of professional users.

The UTi80P complies with all EU safety standards.



UNI-T UTi80P Thermal Imaging Camera Features

  • Small and portable
  • High quality workmanship
  • 4" TFT LCD screen (320×240 pixels)
  • IR resolution: 80×60
  • Temperature measurement range: -10℃ to 400℃ / 14℉ to 752 ℉
  • Automatic alarm for high/low temperature
  • Hot spot detection (High/Low)
  • Automatic tracking for hot spot/cold spot
  • Image recording and storage in the device
  • Color palettes: 3 (Iron, Rainbow, grey)
  • Micro SD card slot
  • USB interface
  • Analysis on PC possible thanks to included software
  • Rechargeable Li-Ion battery pack
  • 1/4" tripod mounting hole
  • 1m drop resistant
  • Scope of delivery: 1x thermal imaging camera, 1x carrying bag, 1x strap, 1x memory card Micro-SD (16 GB), 1x USB cable, 1x user manual, 1x software CD



UNI-T UTi80P Thermal Imaging Camera Technical Data

Image data

  • Temperature range: -10 ... +400 °C / -14 °F ... 752 °F
  • IR resolution: 80 x 60 pixels
  • NETD: <150 mK (0.15 °C)
  • Pixel size: 17 µm
  • Palettes: Iron, Rainbow, grey
  • FOV: 51° (H) x 38° (V)
  • Frame rate: 9 Hz
  • Emissivity: adj. 0.1 - 0.99
  • Deviations to image data: +/- 2% or 2 °C at -10...140 °C +/- 3% or 3 °C at -140...450 °C
  • Resolution: 0.1 °C



Data Device

  • Display: 2.4" TFT LCD
  • Display resolution: 320 x 240 pixels
  • Display dimension: 48 x 36 mm
  • Rechargeable battery: 3.7 V/ 1300 mAh (Li-Ion)
  • Dimensions: 76 x 76 x 22 mm
  • Weight: 125 g
UNI-T
UTi80P
6935750580677
UTi80P
