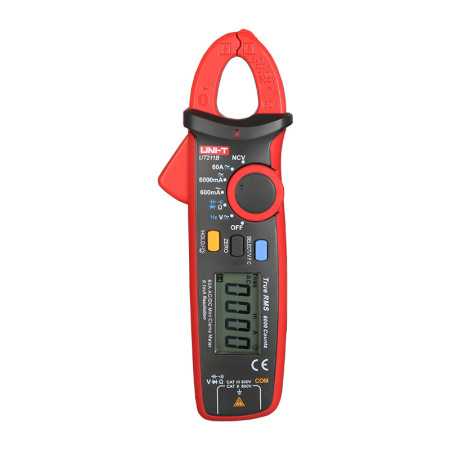

UT 211B Mini clamp meter - Versatile measuring instrument for professional applications
General features and functions
The UT 211B Mini clamp meter is a high-precision tool specially designed for electrical engineers to effectively measure voltages, currents and resistances. This compact device enables the measurement of voltages up to 600 V AC/DC and currents up to 60 A AC/DC. Thanks to its ability to measure resistances up to 60 MOhm and capacitances up to 59.99 mF, this mini clamp meter is an essential instrument in any electrical engineering toolkit.
Special measuring functions and safety features
The UT 211B is equipped with the TRMS measurement function, which enables the precise measurement of alternating current in non-linear loads. A particular highlight is the Varied Frequency (V.F.C.) function, which allows frequency converter-controlled devices to be tested. The integrated non-contact voltage test (NCV function) provides additional safety by allowing electrical fields in the vicinity to be detected without the need for direct contact.
Other useful features include the diode test and continuity test, which help to check the functionality of electronic components. Overload protection and the compliant protection class CAT II 600 V, CAT III 300 V ensure safety when using the device under various conditions.
Comfort and user-friendliness
The design of the UT 211B Mini clamp meter has been optimized with user-friendliness in mind. The easy-to-read LCD display with backlight enables clear display of the measured values even in poor lighting conditions. The integrated LED work light is particularly helpful in dark environments. Functions such as automatic measuring range selection, data hold, zero mode and automatic switch-off make everyday work easier and help to increase battery life. In addition, a low battery indicator provides a timely warning that the battery needs to be replaced.
With a compact size that allows easy handling in confined spaces and the ability to grip conductors up to 17 mm in diameter, the UT 211B Mini clamp meter is an excellent tool for a wide range of electrical measurement tasks.
UT 211B Mini clamp meter Technical data & scope of delivery
- Basic accuracy: 0.7%
- LC display: 39 x 26mm, illuminated
- Display range: 6,000 counts
- Current measurement, AC: 0 - 60A / ±1.5% + 10 dgt.
- Current measurement, DC: 0 - 60A / ±2.0% + 3 dgt.
- Voltage measurement, AC: 0 - 600 V / ±0.8% + 3 dgt.
- Voltage measurement, DC: 0 - 600 V / ±0.7% + 3 dgt.
- Resistance measurement: 0 - 60 MOhm / ±0.8% + 2 dgt.
- Capacitance: 0 - 59.99 mF / ±4.0% + 5 dgt.
- Power supply: 2x AAA/micro batteries
- Dimensions: 175 x 60 x 33mm / 170g
- Scope of delivery: Current clamp meter, test leads, batteries, bag, manual
