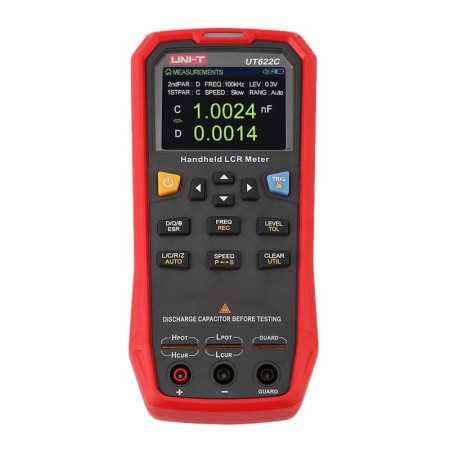

UNI-T UT622C LCR Meter Description
The UT622C is a high performance, portable component (LCR) meter that can measure inductors, resistors and capacitors and their secondary characteristics (D (dissipation factor), Q (quality factor), Θ (phase angle in degrees), Θ (phase angle in radians) and ESR (equivalent series or parallel resistance)). The parameters of the components are measured by AC voltage with selectable frequency of 100, 120, 1000, 10000, 100000 Hz and selectable amplitude of 0.1 Vrms, 0.3 Vrms, 1.0 Vrms at the output impedance of the signal source 100Ω. Here, the highest measurement accuracy is 0.1%. On the 2.8-inch TFT LCD display of the device, all measurements can be displayed accurately.
In summary, the UT622C is perfectly suited for professional users who are looking for a high-quality and accurate LCR meter (component tester).
The UT622C complies with all EU safety standards.
UNI-T UT622C LCR Meter Features
- manual LCR meter for primary and secondary parameters of components
- automatic component identification
- measurement with AC voltage 100, 120, 1000, 10000 or 100000 Hz
- large backlit TFT LCD display with 10 brightness levels
- the display range is maximum 99999 counts maximum
- accuracy 0,1
- possibility to select components according to given tolerances
- selectable amplitude measuring voltage 0.1 Vrms, 0.3 Vrms, 1.0 Vrms
- equivalent mode selection (for Z <100Ω serial, for Z <10kΩ parallel)
- mini-USB interface for data transfer to PC / charging the device
- built-in high capacity battery: 1800 mAh
- power supply: rechargeable battery or AC adapter
- running time with one battery charge: approx. 8 hours
- functions in recording mode and data statistics: AVG (average), MAX, MIN
- automatic switch-off: yes after 5, 15, 30, 60 minutes
- audible and visual alarm for comparison of tolerance results
- reset open circuit or short circuit tester: yes
- setting of tolerance value from nominal value: 1 % to 20 %, default 5 %
- component counting: all, compliant, non-compliant
- scope of delivery: UT622C instrument, USB interface cable, 4-pin Kelvin measuring cable UTR-L100K-H, software for PC (CD), gold-plated short-circuit board UTR-001
UNI-T UT622C LCR Meter Technical Data
|
Model |
UT622A |
UT622C |
UT622E |
|
Test frequency |
100Hz, 120Hz, 1kHz, 10kHz |
100Hz, 120Hz, 1kHz, 10kHz, 100kHz |
100Hz, 120Hz, 1kHz, 10kHz, 100kHz |
|
Test signal level |
0.1Vrms, 0.3Vrms, 1Vrms |
||
|
Output impedance |
100Ω |
||
|
Measurement parameters |
Primary: L/C/R/Z Secondary: D/Q/θ/ESR |
Primary: L/C/R/Z/DCR |
|
|
Auto LCR |
√ |
||
|
Test terminals |
Three-terminal test jacks, five-terminal test sockets |
||
|
Test rate |
Fast (20 times/s), medium (5 times/s), or slow (2 times/s) |
||
|
DCR test rate |
-- |
-- |
Fast (20 times/s), medium (5 times/s), or slow (2 times/s) |
|
Ranging mode |
Auto/hold |
||
|
Tolerance range |
1%~20% |
||
|
Testing circuit mode |
Series/parallel mode |
||
|
Clearing correction |
Open/short circuit |
||
|
Fuse of test ports |
0.1A/250V |
||
|
Communication interface |
Mini-USB |
||
|
LED alarm for tolerance |
√ |
√ |
√ |
|
Display range |
|||
|
Maximum reading of primary parameters |
99999 |
||
|
Minimum resolution |
0.0001 |
||
|
Maximum accuracy |
0.1% |
||
|
L |
0.00μH~99.999H |
||
|
C |
0.00pF~99.999mF |
||
|
Z/R |
0.0000Ω~9.9999MΩ |
||
|
ESR |
0.0000Ω~999.99Ω |
||
|
D |
0.0000~9.9999 |
||
|
Q |
0.0000~99999 |
||
|
θ |
-179.9°~179.9° |
||
|
DCR |
---- |
0.01mΩ--20.000MΩ |
|
|
Temperature coefficient |
0.1× (specified accuracy) /°C (0°C~18°C or 28°C~40°C) |
||
|
General specifications |
|||
|
Battery |
3.7V 1800mAh lithium polymer battery |
||
|
Battery life |
8 hours |
||
|
AC power adapter |
Input: 220V (1±10%), 50Hz (1±5%); Mini-USB output: 5V, 1A |
||
|
LCD |
2.8 inches TFT LCD 320X240 |
||
|
Product size (W×H×D) |
93mm×192mm×44mm |
||
|
Weight |
420g |
||
