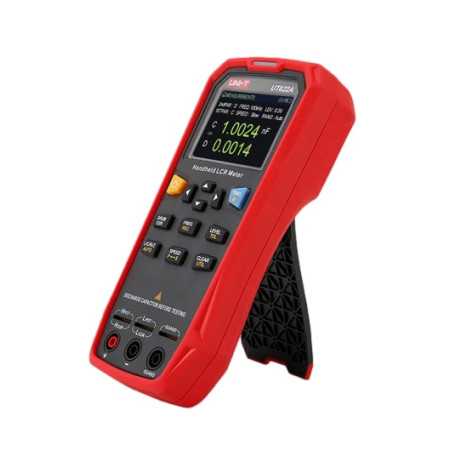

UT622A LCR Meter, Component Tester

Name: UT622A LCR Meter, Component Tester
Brand: UNI-T
SKU: UT622A
Price: 157.25 EUR
Availability: BackOrder

Advertising [ProductAdditionalInfo]

FREE shipping on orders over $25.00 shipped by Amazon. Details

Advertising [Product3rdColumn]

Security policy
Site hosted and secured in Eu.

Delivery policy
Packages transported with the service of Bpost, DpD, PostNl or your own carrier.

Return policy
Defective devices (not electronic components) are (according to the manufacturer's warranty) exchanged or repaired.

UNI-T UT622A LCR Meter Beschreibung

The UT622A is a high performance, portable component (LCR) meter capable of measuring inductors, resistors and capacitors and their secondary characteristics (D (dissipation factor), Q (quality factor), Θ (phase angle in degrees), Θ (phase angle in radians) and ESR (equivalent series or parallel resistance)). The parameters of the components are measured by AC voltage with a selectable frequency of 100, 120, 1000, 10000 Hz and a selectable amplitude of 0.1 Vrms, 0.3 Vrms, 1.0 Vrms at the output impedance of the signal source 100Ω. Here, the highest measurement accuracy is 0.1%. On the 2.8-inch TFT LCD display of the device, all measurements can be displayed accurately.

In summary, the UT622A is perfectly suited for professional users who are looking for a high-quality and accurate LCR meter (component tester).

The UT622A complies with all EU safety standards.

UNI-T UT622A LCR Meter Features

manual LCR meter for primary and secondary parameters of components
automatic component identification
measurement with AC voltage 100, 120, 1000 or 10000 Hz
large backlit TFT LCD display with 10 brightness levels
display range is maximum 99999 counts
maximum accuracy 0.1
possibility to select components according to given tolerances
selectable amplitude measuring voltage 0.1 Vrms, 0.3 Vrms, 1.0 Vrms
equivalent mode selection (for Z <100Ω serial, for Z < 10kΩ parallel)
mini-USB interface for data transfer to PC / charging the device
built-in high capacity battery: 1800 mAh
power supply: rechargeable battery or AC adapter
running time with one battery charge: approx. 8 hours
functions in recording mode and data statistics: AVG (average), MAX, MIN
automatic power off: yes after 5, 15, 30, 60 minutes
audible and visual alarm for comparison of tolerance results
reset open circuit or short circuit tester: yes
tolerance value setting from nominal: 1% to 20%, default 5%.
component counting: all, compliant, non-compliant
scope of delivery: UT622A device, USB interface cable, UTR-002 two-pole test cables with alligator clips, software for PC (CD), UTR-001 gold-plated short-circuit board

UNI-T UT622A LCR Meter Technical Data

Model	UT622A	UT622C	UT622E
Test frequency	100Hz, 120Hz, 1kHz, 10kHz	100Hz, 120Hz, 1kHz, 10kHz, 100kHz	100Hz, 120Hz, 1kHz, 10kHz, 100kHz
Test signal level	0.1Vrms, 0.3Vrms, 1Vrms
Output impedance	100Ω
Measurement parameters	Primary: L/C/R/Z Secondary: D/Q/θ/ESR		Primary: L/C/R/Z/DCR Secondary: D/Q/θ/ESR
Auto LCR	√
Test terminals	Three-terminal test jacks, five-terminal test sockets
Test rate	Fast (20 times/s), medium (5 times/s), or slow (2 times/s)
DCR test rate	--	--	Fast (20 times/s), medium (5 times/s), or slow (2 times/s)
Ranging mode	Auto/hold
Tolerance range	1%~20%
Testing circuit mode	Series/parallel mode
Clearing correction	Open/short circuit
Fuse of test ports	0.1A/250V
Communication interface	Mini-USB
LED alarm for tolerance (pass: green; fail: red)	√	√	√
Display range
Maximum reading of primary parameters	99999
Minimum resolution	0.0001
Maximum accuracy	0.1%
L	0.00μH~99.999H
C	0.00pF~99.999mF
Z/R	0.0000Ω~9.9999MΩ
ESR	0.0000Ω~999.99Ω
D	0.0000~9.9999
Q	0.0000~99999
θ	-179.9°~179.9°
DCR	----		0.01mΩ--20.000MΩ
Temperature coefficient	0.1× (specified accuracy) /°C (0°C~18°C or 28°C~40°C)
General specifications
Battery	3.7V 1800mAh lithium polymer battery
Battery life	8 hours
AC power adapter	Input: 220V (1±10%), 50Hz (1±5%); Mini-USB output: 5V, 1A
LCD	2.8 inches TFT LCD 320X240
Product size (W×H×D)	93mm×192mm×44mm
Weight	420g
