LC-BT-6-1
LC Bluetooth proximity switch single relay module MBO21F (HID) low-power module seamless link firmware mobile phone automatic sensing support APP/mini program/serial port configuration parameters
local_shipping FREE SHIPPING Belgium-France-Nederland-Germany on ALL PRODUCTS for 125 € order
Site hosted and secured in Eu.
Packages transported with the service of Bpost, DpD, PostNl or your own carrier.
Defective devices (not electronic components) are (according to the manufacturer's warranty) exchanged or repaired.

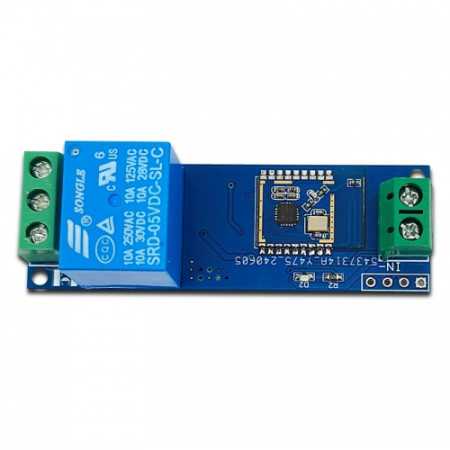

The Bluetooth proximity switch single relay module is developed based on the XY-MBO21F module, with multiple types of voltage regulators onboard. It supports 5V-35V DC input and Bluetooth automatic sensing. After connecting to the module via Bluetooth on a mobile phone, the relay will automatically turn on, and after disconnecting Bluetooth, it will automatically turn off, achieving the purpose of switching off the output voltage
It has the advantages of near automatic sensing, support for configuring parameters in multiple ways such as APP/mini program/serial port, low power consumption, and stable performance

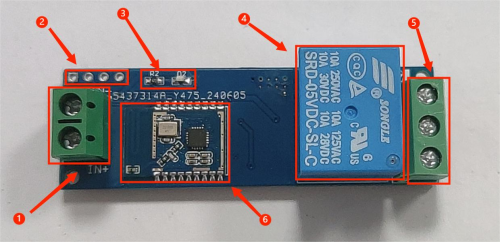

Hardware Introduction and Explanation

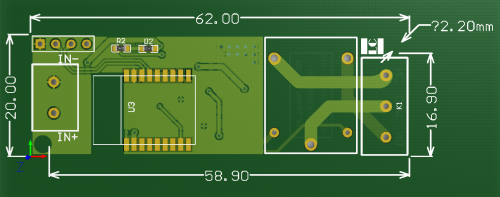

Board size: 20 * 62mm/18g
1. Power supply port: DC 5-30V power supply
2. UART interface: left to right: GND-RX-TX-5V
3. Relay switch status LED indicator light
4. Single channel 5V relay
5. Module output port: NC is the normally closed point, NO is the normally open point
6. Bluetooth proximity switch module: XY-MBO21F (HID)
Functional Features
Automatic sensing switch: Innovative proximity sensing technology enables mobile phones to automatically switch on and off when approaching, without the need for tedious operations, bringing a seamless intelligent experience
Multi platform configuration support: Whether through an app, mini program, or serial port, device parameters can be easily configured to meet the personalized needs of different users
Flexible AT command control: supports modifying switch lock signal values, modes, and durations through AT commands, providing a highly customizable operating experience
UART interface reservation: The device reserves a UART interface for developers to send and receive data through AT commands, expanding device functionality
Low power consumption and high performance: Optimized energy management ensures that devices can maintain stable performance output even in a low-power state
Instructions for use
1. Provide power to the Bluetooth proximity switch single relay module (DC 5-30V power supply)< br>

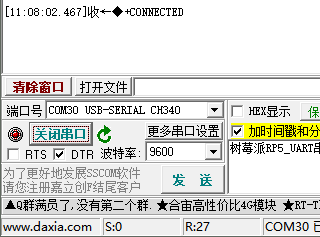

2. Open the Bluetooth system of your phone, search for Bluetooth devices and connect them (starting with NBH). The initial pairing password is 123456. Check the Bluetooth connection status of your phone, and the module's serial port will output connection information:
3. Turn off Bluetooth, the relay will disconnect; Turn on Bluetooth, the relay will turn on
4. For operations such as changing Bluetooth name and password, modifying relay switch lock signal value, switch lock mode and switch duration, please refer to the attached "XY-MBO21F_HID Specification Book.PDF"
