LC-BT-8-1

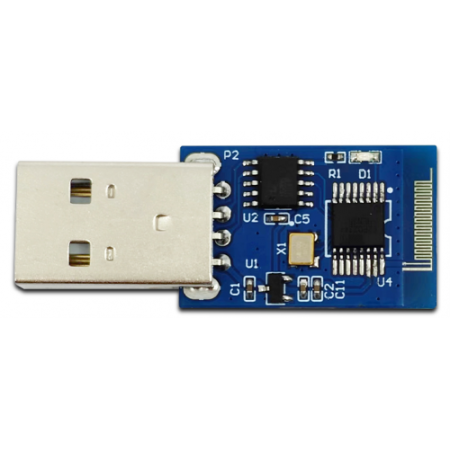

ECB02C BLE5.2 Bluetooth serial port transparent transmission module
local_shipping FREE SHIPPING Belgium-France-Nederland-Germany on ALL PRODUCTS for 125 € order
Site hosted and secured in Eu.
Packages transported with the service of Bpost, DpD, PostNl or your own carrier.
Defective devices (not electronic components) are (according to the manufacturer's warranty) exchanged or repaired.
This module can transmit serial data through Bluetooth 5.2 protocol, and users can enjoy a seamless data transmission experience within a 5-meter range< In addition, the flexibility of this module is reflected in its ability to be easily configured as a master or slave mode through AT commands, enabling automatic connection and pairing with paired devices, greatly simplifying the device setup process
Introduction and Explanation

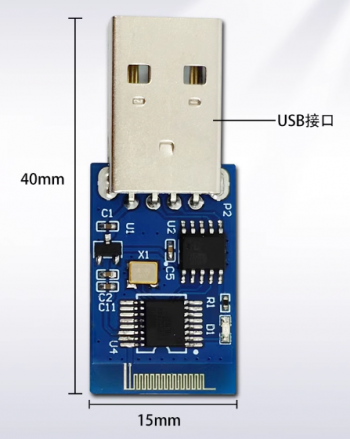

Structural dimensions
Size: 15 * 40mm/10g
Functional Features
- Bluetooth 5.2 technology: using the latest Bluetooth 5.2 chip, providing strong anti-interference ability and stable data transmission
- Short distance and efficient transmission: Within a range of 5 meters, ensure that users can experience seamless data transmission, suitable for various short-range communication scenarios< br>
- Flexible configuration: With AT commands, users can easily configure modules into host or slave mode to meet different application requirements
- Automatic connection and pairing: The module supports automatic connection and pairing with paired devices, simplifying the setup process and improving operational convenience
- Low power design: The module has a lightweight and simple design with low power consumption characteristics, suitable for long-term operation and reducing energy consumption
- Data transmission stability: Ensure the stability of data transmission, reduce transmission errors and data loss, and improve communication reliability
Instructions for use
The first use requires pairing, and after pairing, it will automatically connect when powered on< br>
Assuming two modules are purchased, one is considered a slave and the other is considered a master< br>

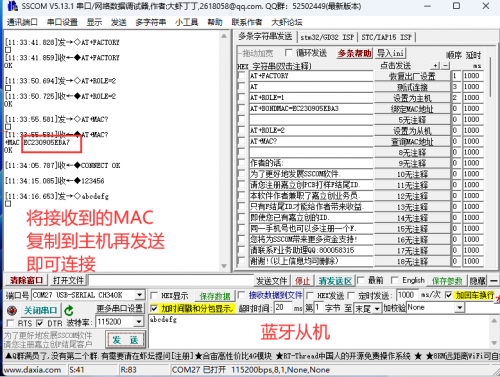

The slave needs to be configured as a Bluetooth slave first, then read the MAC address, and copy the MAC to bind to the host

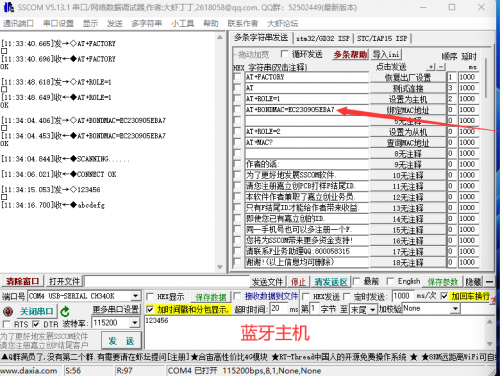

The host needs to be configured as a Bluetooth host first, then paste the MAC address of the slave, bind the MAC address, and then you can connect
