LC-DL-ESP32
ESP32 test-board burner One-click Download module
local_shipping FREE SHIPPING Belgium-France-Nederland-Germany on ALL PRODUCTS for 125 € order
Site hosted and secured in Eu.
Packages transported with the service of Bpost, DpD, PostNl or your own carrier.
Defective devices (not electronic components) are (according to the manufacturer's warranty) exchanged or repaired.
Overview :

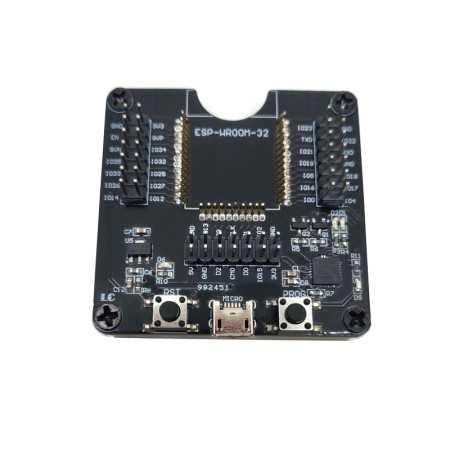

LC ESP32 burner suitable for firmware burning test of modules such as lexin ESP-WROOM-32、ESP-WROOM-32D、ESP-WROOM-32U、ESP32-SOLO- 1 ,all IO ports have been extracted and can be as a minimum system development board or a small batch burning fixture.
Function
1. Suitable for firmware burning test of modules such as lexin ESP-WROOM-32、ESP-WROOM-32D、ESP-WROOM-32U、ESP32-SOLO- 1。
2.Support firmware one-click download
3. Safe and reliable, small size, long service life.
4.There are power indicator light, burning indicator light, serial communication indicator light.
5.Lead out all IO ports,can be as a minimum system development board or a small batch burning fixture
Hardware introduction and description
Board size：50*51mm
Board weight :24g

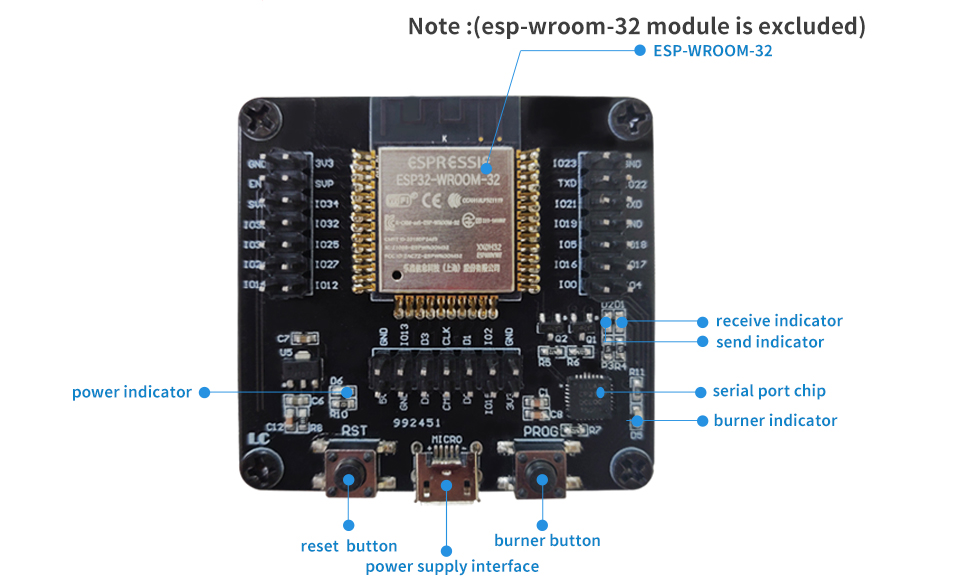

Board of function
Interface of description
User guide :
1. According to the operating system to download the corresponding CP2102 serial port chip driver and install it.

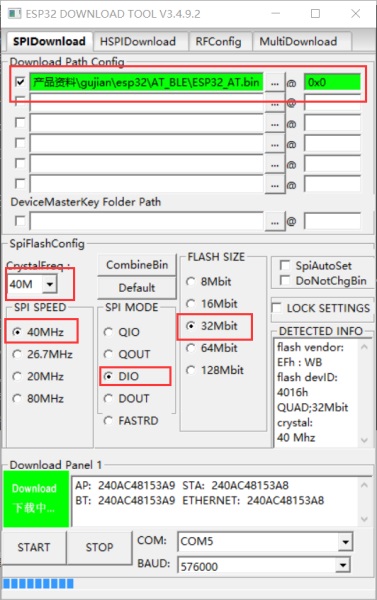

2. Download official Flash download tool ESPFlashDownloadTool.
3.Automatic firmware download:Press into the module, plug in USB line supply power，cooperate with Flash download tool, configure the corresponding burning parameters,click start download, can start firmware burning, The downloader will automatically reset and put the module into burning mode.
4.Download firmware by manual:Press into the module, plug in USB line supply power，open burner software, configure the corresponding burning parameters,press burner button long time . then press reset button short time ,click start download, can start firmware burning.
