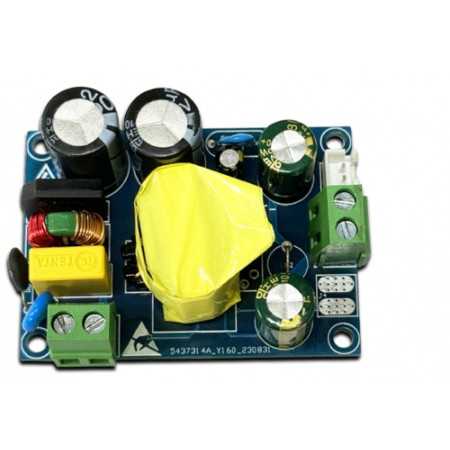

AC-DC Gallium Nitride Isolation Switch Power Module 40W High Current 220V to 12V

€0.00

€0.00 Tax excluded

local_shipping FREE SHIPPING  Belgium-France-Nederland-Germany on ALL PRODUCTS  for 125 € order

Security policy
Site hosted and secured in Eu.
Delivery policy
Packages transported with the service of Bpost, DpD, PostNl or your own carrier.
Return policy
Defective devices (not electronic components) are (according to the manufacturer's warranty) exchanged or repaired.

Regarding LC-EM-1283

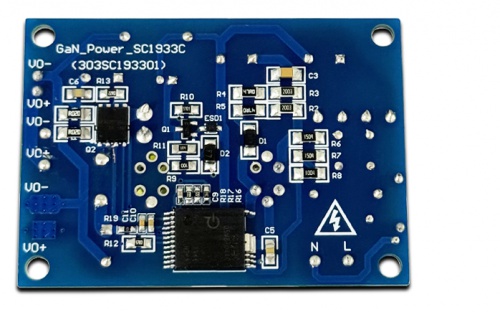

The LC AC-DC gallium nitride isolation switch power module uses Power Integrations' SC1933C as the main control chip,
which can efficiently AC90-250V@50Hz ~60Hz AC power is converted into stable 12V DC power,
and the input end comes with EMI filtering and lightning protection circuit to prevent mutual interference between the power grid and the switching power supply.
The output end supports three wiring methods: screw post, plug-in, and wire bonding





Introduction and Explanation

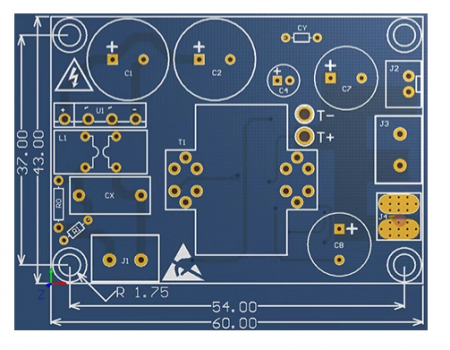

Board size: 60 * 43mm/50g

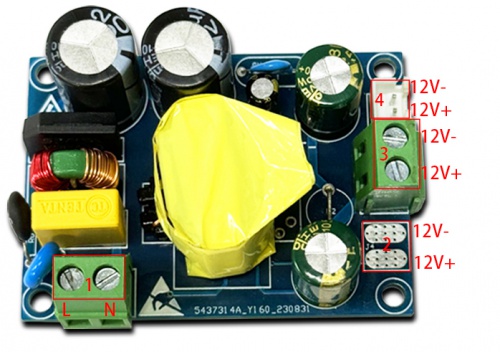

Interface Introduction



1. AC90-250V input: KF128-5.08mm-2P terminal (supporting 22-12AWG wires)

2. DC12V output: SMD pads (can be directly soldered)

3. DC12V output: KF128-5.08mm-2P terminal (supporting 22-12AWG wires)

4. DC12V output: XH2.54mm-2P terminal


Functional Features

    Onboard SC1933C High Efficiency Gallium Nitride Power IC

    Input voltage: AC90-250V@50Hz-60Hz

    Output voltage and current: 12V/3.3A

    Maximum output power: 40W

    Input terminal: KF128-5.08mm-2P terminal

    Output terminals: KF128-5.08-2P terminal block, XH2.54mm-2P terminal, SMD pad


Test instructions

Test instructions



The AC input terminal is connected to AC power, and the DC output terminal is connected to the load. The following is the reference data for load testing:

Load current (A) Output voltage (V) Load current (A) Output voltage (V)
0 12.16 1.7 11.85
0.1 12.11 1.8 11.83
0.2 12.11 1.9 11.82
0.3 12.08 2.0 11.81
0.4 12.04 2.1 11.80
0.5 12.03 2.2 11.79
0.6 12.01 2.3 11.78
0.7 11.99 2.4 11.78
0.8 11.96 2.5 11.77
0.9 11.95 2.6 11.76
1.0 11.94 2.7 11.75
1.1 11.93 2.8 11.74
1.2 11.92 2.9 11.73
1.3 11.90 3.0 11.72
1.4 11.88 3.1 11.71
1.5 11.87 3.2 11.70
1.6 11.86 3.3 11.70



Note: The above test results are for reference only. The actual product performance may be close to/better than the above test results (depending on the testing environment)


Safety reminder: As it involves AC220V AC power, please do not touch the circuit board directly with your hands during use!!
It is recommended to wait for 3 minutes after the power is turned off before taking out the board!!
