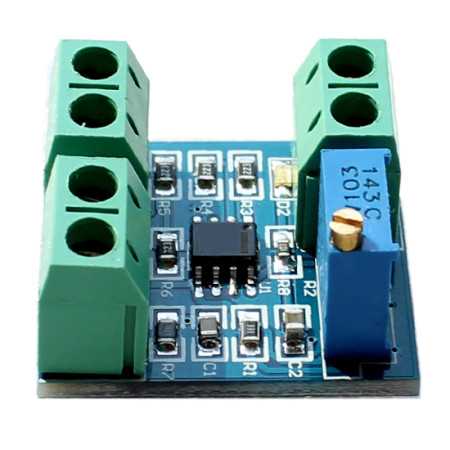

LC-LM358-V2A
Voltage Turn Current Module 0-5V Voltage Turn to 0-20mA Current
local_shipping FREE SHIPPING Belgium-France-Nederland-Germany on ALL PRODUCTS for 125 € order
Site hosted and secured in Eu.
Packages transported with the service of Bpost, DpD, PostNl or your own carrier.
Defective devices (not electronic components) are (according to the manufacturer's warranty) exchanged or repaired.
Overview
LC voltage turn current module LC-V2A turn 0-5V voltage to 0-20mA current signal output, by adjusting the voltage to adjust the current .Module size is small, easy to apply in different places.
Function features
1.MCU embedded technology.
2.Implementation on the industry standard voltage (0 ~ 5V) converts the current that industry standards (0 ~ 10 mA, 4 ~ 20 mA).
3.The drive ability MAX15MA, linear output
4.The output signal can be directly connected AD converter
5.Can be connected with the AD function with single chip microcomputer.
6.Easy to operate, can pass to fine-tuning potentiometer.
7.Convenient module is small, easy to carry and use.
8.Module working voltage: DC10 - 30V.
9.Conversion range: 0-5 v voltage is converted to 0 to 20 mA current
Hardware introduction
VCC: work power 10 - 30V
The power to GND: work
VIN: 0-5V input voltage
GND: input voltage
OUT: output current 0-20 mA
GND: output
Instructions: the working voltage VCC &gnd, not reverse connection, in order to avoid damage to the board and components.
In access control voltage VIN end, the range is 0-5 v, on the output side there is the corresponding output current.
The corresponding relation of voltage and current can by adjusting the potentiometer to fine-tune the calibration.
