LC-DL-JTAG-USB

 Overview
LC New USBASP Downloader can be directly connected with the computer USB port, the real USB downloader products. Through it connects the target board, may carry on the downloading programming operation to the monolithic integrated circuit. Easy to use, especially suitable for notebook , desktop , through USB port programming download debugging.


 The function and characteristics
1, On-board new imported ATMega8A-AU chip ;
2, With power and programming two lights;
3, On-board 500mA over-current protection self-recovery fuse;
4, Board two 3.6V regulator, so that more stable download;
5, Support AT89S51 / 52 single chip and AVR all ASP chip;
6, Output port is ATMEL standard port;
7, With a USB power and target board support 5V and 3.3V power supply, can be connected through the jumper cap selection;
8, AUTOSPEED automatic speed control firmware, the downloader will automatically track the frequency of the chip to be programmed, automatically change the speed to achieve automatic speed;
9, Reserved PROGRAMMING programming interface (JP2), the user can upgrade the firmware download;
10, For WIN8.1 / 8/7/ XP 32-bit / 64-bit computer system.


 Introduced the hardware and instructions

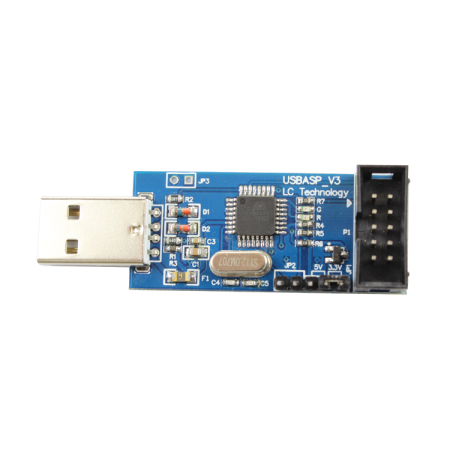

Board size: 48 * 21mm
Board function:

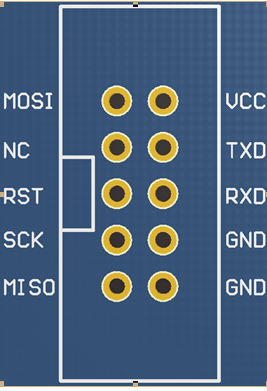

USBASP interface definition (where TXD and RXD are reserved pins, not programmed):



AT89S51 and S52 series pin and download the corresponding connection Definition:
MOSI——>P1.5
MISO——>P1.6
SCK——>P1.7
RST——>RST
GND——>GND
VCC——>VCC
Support chip list:
51 series
AT89S51、AT89S52、、AT89S53、AT89S8252
AVR series：
ATTiny12(L)、 ATTiny13(V)、ATTiny15(L)、ATTiny24(V)、ATTiny25(V)、ATTiny26(L)、ATTiny2313(V)、ATTiny44(V)、ATTiny45(V)、ATTiny84(V)、ATTiny85(V)、AT90S2313(L)、AT90S2323(L)、AT90S2343(L)、AT90S1200(L)、AT90S8515(L)、AT90S8535(L)、ATMEGA48(V)、ATMEGA8(L)、ATMEGA88(V)、ATMEGA8515(L)、ATMEGA8535(L)、ATMEGA16(L)、ATMEGA162(V)、ATMEGA163(L)、ATMEGA164(V)、ATMEGA165(V)、ATMEGA168(V)、ATMEGA169(V)、ATMEGA169P(V)、ATMEGA32(L)、ATMEGA324(V)、ATMEGA325(V)、ATMEGA3250(V)、ATMEGA329(V)、ATMEGA3290(V)、ATMEGA64(L)、ATMEGA640(V)、ATMEGA644(V)、ATMEGA645(V)、ATMEGA6450(V)、ATMEGA649(V)、ATMEGA6490(V)、ATMEGA128(L)、ATMEGA1280(V)、ATMEGA1281(V)、ATMEGA2560(V)、ATMEGA2561(V)、AT90CAN32、AT90CAN64、AT90CAN128、AT90PWM2(B)、AT90PWM3(B),etc.
