LC-CAN-MCP2515
CAN Expansion Board ARDUINO CAN Automotive Communication Protocol Analysis and Learning Module
Advertising [ProductAdditionalInfo]
local_shipping FREE shipping on orders over $25.00 shipped by Amazon. Details
Advertising [Product3rdColumn]
Site hosted and secured in Eu.
Packages transported with the service of Bpost, DpD, PostNl or your own carrier.
Defective devices (not electronic components) are (according to the manufacturer's warranty) exchanged or repaired.
LC CAN module has become the preferred choice in embedded system design due to its excellent performance and flexibility
It adopts MCP2515 CAN controller and NXP CAN protocol chip, and the combination of the two ensures the efficiency and stability of the module in CAN communication protocol
By seamlessly integrating with Arduino, developers can quickly build powerful devices such as CAN protocol analyzers and data transceivers
The module design is well considered, with two reserved button interfaces, providing convenience for user operation
In addition, it is equipped with IIC interface and serial port, further expanding the module's connectivity and application scenarios
Whether in the fields of industrial automation, automotive electronics, or smart homes, this CAN module can help your project quickly integrate and develop CAN communication with its efficient and reliable performance
View

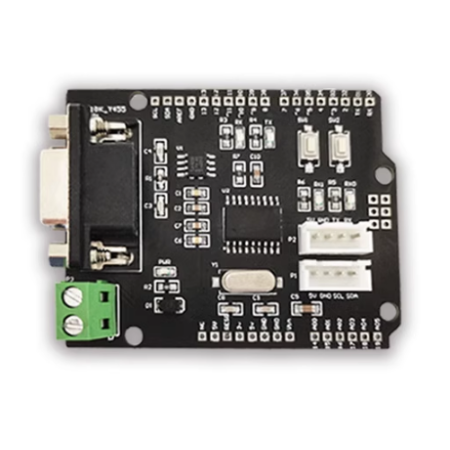

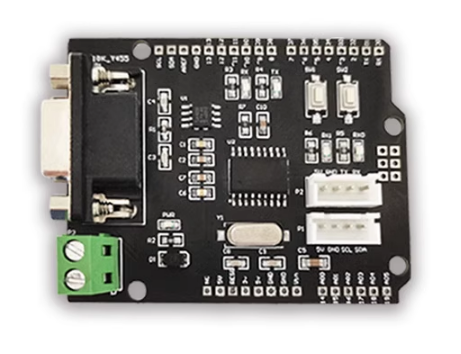

Front view

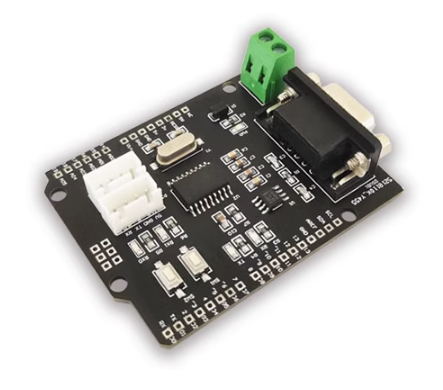

Side view

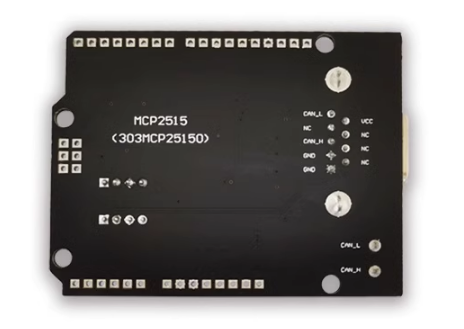

Reverse image
Introduction and Explanation

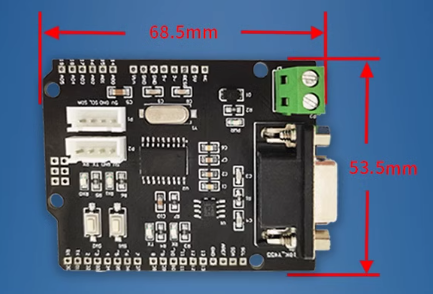

Board size: 68.5 * 53.5mm/28g
Functional Features
Perfectly compatible with Arduino UNO, enabling developers to easily integrate with Arduino UNO. This design not only simplifies the process of hardware connection, but also greatly expands the functional boundaries of Arduino
The module is equipped with a serial port indicator light, which visually displays the communication status of the data transmission and reception process, ensuring transparency and real-time operation
CAN data can be input through a 9-pin serial port or wiring terminal, which can meet the needs of different scenarios
Instructions for use
Refer to the schematic diagram and use the PSI interface to communicate with Arduino. You can search for a suitable Arduino library to drive MCP2515. The reference program uses acan2515

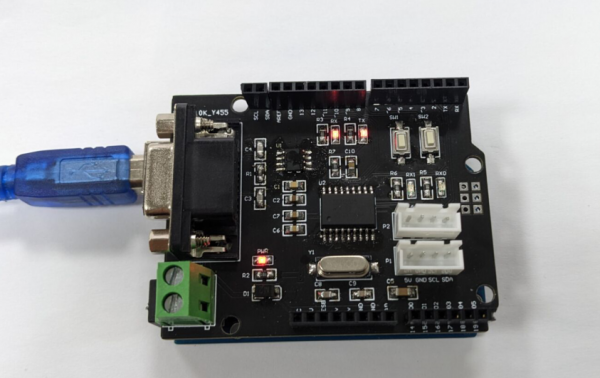

Connect as shown in the diagram, power on to burn the reference program, press the SW1 button, and the CAN module will generate data

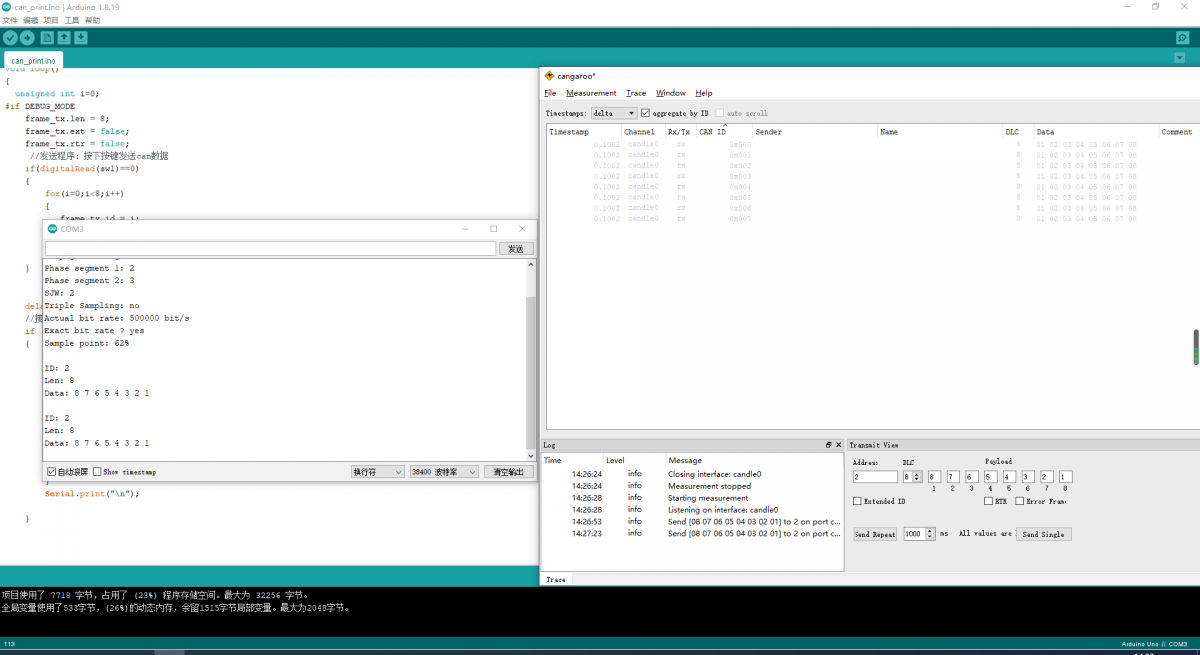

It is recommended to use it in conjunction with a USB to CAN analyzer, as the data generated can be seen on the upper computer
Send data from USB to CAN host computer to Arduino, and Arduino can print out the received CAN data
