LC-USB-3160-4

Overview
LC USB 4 channel isolation module adopt ADI company proprietary iCoupler® technology,Compatible with USB2.0，provides fully isolated 1.5 Mbps and 12 Mbps data rates ,isolation 1500V voltage,Not connect external power supply required, no drive required. Avoiding USB port get interfere from external strong power supply and strong signal


Function features
1. Compatible with USB2.0
2. ADUM3160 isolation voltage: 2500V
3. Power supply isolation module: 1500V
4. Support USB low speed 1.5Mbps and full speed 12Mbps,not support pure high speed equipment.
5.Support USB control transfer, bulk transfer, interrupt transfer, sync/isochronous transfer
6.Power supply:take from the computer host USB port
7.Can connect external power supply DC5v,with reverse connection protection
8.Onboard output power supply Jinshengyang B0505S power 1x2W,when the total working current of the USB device>400mA,need connect power supply by external DC5V
9.Drive free, support hot swap,Plug and play
10.Each usb port have USB dedicated ESD protection chip
11.Output four USB ports are not isolated from each other, each output has a USB status indicator


Hardware introduction and description

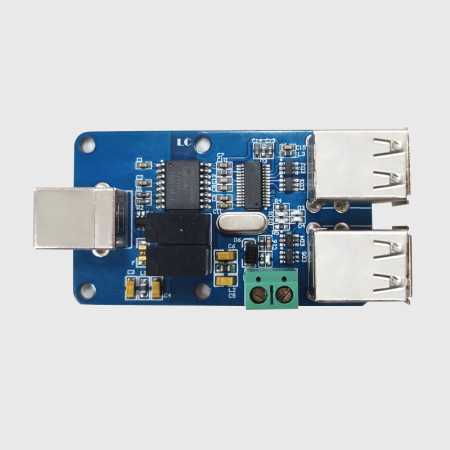

1.Board size: 63*37 mm   weight: 54g

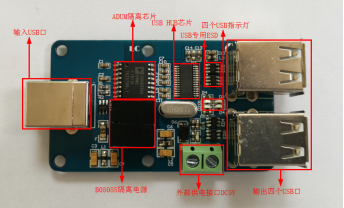

2.Functions of the board

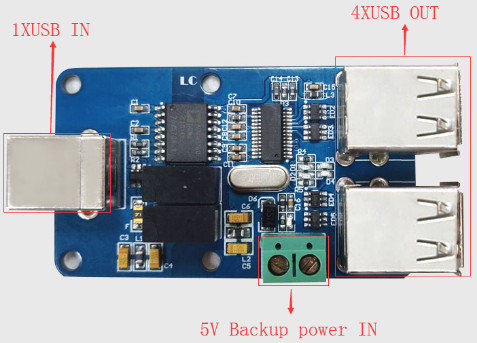

(1)Interface description

(2)Using description
Scope of application:
①Contain strong electricity and strong interference work environment
Part electric circuit contain strong electricity and strong interference( such as high voltage, frequency converter, motor drive etc.) environment,When it related to connecting a computer occasion,must isolate to ensure computer and personal safety.
②Noise sensitive area
Computer is a large noise source,  In the field of noise sensitivity that we can through this device to USB interface make communication isolate, such as high-precision USB data acquisition system, HIFI sound system.
③USB debugging equipment
Like all kind of USB interface JTAG/SWD Emulator、ISP/ASP/IAP/ICP Downloader etc. When you at the process of debugging, often can't connect, simulation is abnormal ,can use Usb isolator try to improve this situation.
④All kinds of industrial control USB devices
In the industrial environment,USB device Frequent crashes,like USB Mouse, keyboard, USB to serial port and other communication devices,USB isolators can reduce the chance of crashes and damage to these devices in industrial environments,sometimes we need lengthen USB line,USB isolator can Acting as a very good USB repeater, also can isolation upstream and downstream equipment in ground pressure difference.
⑤Other common USB peripherals such as mouse, keyboard, USB sound card, USB flash drive, printer, digital camera, USB hub (HUB), USB camera.
⑥Medical equipment
The most important and primary consideration is Human safety,but some medical equipment through USB interface with computer connect, In the process of collecting data or treatment on the human body,need to have direct electrical contact with the human body.
To avoid cause electric shock by the high voltage that may be transmitted from the computer to the human body through the device and interface lines, the electrical isolation of the interface line becomes one of the important protective measures.


Supported device
Full speed equipment: USB flash drive, digital camera, card reader, mobile hard disk, U shield, USB hub AVRJTAG、AVRISP、AVRISPMKII、S-Lab、JET51、J-Link、FET430UIF、PICKIT2、XDS100、LPC-Link、ICD2、USB Transfer serial port (FT232、CP2102、PL2303、CH341 chip).
Low speed equipment: keyboard, mouse ,USBASP、USBHID device USBCDC device
Unsupported devices
USB wireless network card, some USB3.0 USB flash drive
