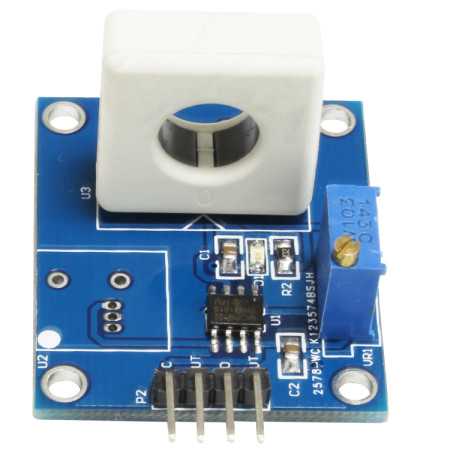

LC-Sensor-WCS2702
WCS2702 Current Detection Sensor Adjustable 2A Short Circuit
Advertising [ProductAdditionalInfo]
local_shipping FREE shipping on orders over $25.00 shipped by Amazon. Details
Advertising [Product3rdColumn]
Site hosted and secured in Eu.
Packages transported with the service of Bpost, DpD, PostNl or your own carrier.
Defective devices (not electronic components) are (according to the manufacturer's warranty) exchanged or repaired.
Overview
LC WCS2702 current sensor has two main functions,the first function is output an analog signal that can be used on A / D conversion; The second function is output a switch signal, and the over-current value can be set in advance. When the actual current value greater than the preset current value, the switch signal from low to high, and LED indicator. Easy to use.
Function features
1.The working voltage: DC DC5V
2.He current detection range
DC: ± 2A; AC: 1.4A (for analog output)
3.Linearity: K = 1V / A
4.Limit current range: 40mA - 2A (for the switch output)
5.With over-current signal indicator
6.With mounting holes, easy to install on you device
7.The sampling current convert to analog voltage signal output, can be connected to ADC; TTL level signal output, can be connected to the microcontroller’s I/O
8.The output signal is: analog voltage signal and switch signal
Hardware introduction and description
1.Board size: 37*31mm
2.Functions of the board
(1)Interface description
VCC: positive power supply
DOUT: TTL high / low level switch signal output
GND: power supply negative
AOUT: analog voltage signal
IP +, IP-: current signal input / output
(2)AOUT instruction
VCC,GND connect to DC5V, and the being measured current through the IP+ and IP-:
Analog output: V0= EQ F(Vcc,2) ±Ia*K(for WCS2702,K = 1V / A)
(3)DOUT instruction
VCC,GND connect to DC5V, and the being measured current through the IP+ and IP-, setting the over current value by adjust the potentionmeter,when the LED is on,it means the setting is done,and the DOUT pin will output a high level switch signal
