LC-MC34063A_BOOST

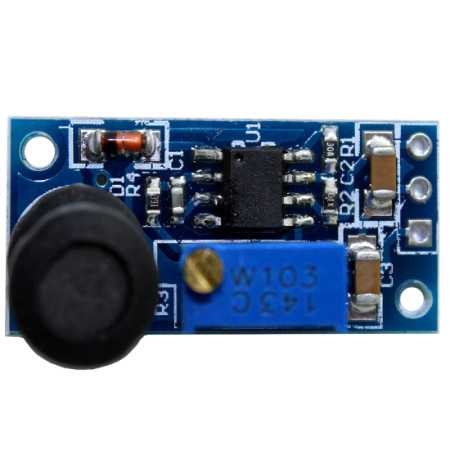

MC34063A Booster Module Battery Booster Module
Advertising [ProductAdditionalInfo]
local_shipping FREE shipping on orders over $25.00 shipped by Amazon. Details
Advertising [Product3rdColumn]
Site hosted and secured in Eu.
Packages transported with the service of Bpost, DpD, PostNl or your own carrier.
Defective devices (not electronic components) are (according to the manufacturer's warranty) exchanged or repaired.
Overview
LC boost module MC34063A_BOOST are based on a small chip MC34063A booster module, low voltage can be up to a certain range of high voltage, which can adjust output voltage through the potentiometer.Can be used in the places where need to improve the voltage.
Function features
1.Low input voltage, high output voltage.Realize the booster function.
2.The output voltage is adjustable.
3.The module size is small.
4.The input voltage range: 3.6V - 30V.
5.Range of output voltage, output voltage of 3.8V to 36V output voltage regulator features: load regulation is less than 5%.
6.Output current:This module IC internal switch tube is 1.5A, but for reasons of safety and calorific value, recommend this module within the load on the power consumption is 0.8 W.When the output is 5V, load within 160 ma.
Note: the higher the output of the negative pressure, load ability is relative decline.
Hardware introduction
VIN: low input voltage
GND: public land
OUT: output increase of voltage
Instructions:the working voltage VCC &gnd, not reverse connection, in order to avoid damage to the board and components.
By adjusting the potentiometer to control the output voltage.
Need to input and output feet by one greater than 100UF electrolytic capacitors to the ground.The input and output filter capacitor is the positive input feet, negative ground. Pressure must be greater than the input and output voltage of capacitor.
