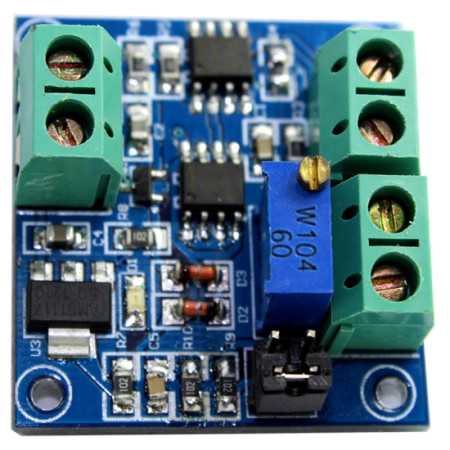

LC-V-PWM
PWM Module 0V to 5V/0V to 10V 0-100% PWM Signal Voltage Convert PWM
Advertising [ProductAdditionalInfo]
local_shipping FREE shipping on orders over $25.00 shipped by Amazon. Details
Advertising [Product3rdColumn]
Site hosted and secured in Eu.
Packages transported with the service of Bpost, DpD, PostNl or your own carrier.
Defective devices (not electronic components) are (according to the manufacturer's warranty) exchanged or repaired.
Overview
LC voltage convert PWM module V-PWM to 0 to 5 V / 0 to 10 V voltage is converted into 0% - 100% of the PWM output, by adjusting the voltage to adjust the PWM duty cycle.Can be used for control of the motor or other places you need to use the PWM.Module size is small, easy to apply in different places.
Function features
1.MCU embedded technology.
2.Easy to operate, can pass to fine-tuning potentiometer.
3.Through the selection of short circuit at different input voltage range.
4.Convenient module is small, easy to carry and use.
5.Module working voltage: DC 5V to 12V
6.Conversion range: 0V-5V / 0V to 10V voltage PWM conversion was 0% - 100%
7.Permissible error: 1% - 3%
Hardware introduction
VCC: work power supply 5V to 12V
The power to GND: work
VIN: 0 to 10 v input voltage
GND: input voltage
GND: output PWM
PWM: output PWM
Instructions: the working voltage VCC &GND, not reverse connection, in order to avoid damage to the board and components.
Access control on the VIN end voltage, voltage range according to the selected mode is divided into 0-5V and 0-10V.
At output PWM is PWM.
Can be adjusted by adjusting the voltage, duty ratio.
Precision could be controlled by adjusting the potentiometer.
0v to 5 v / 0v to 10 v 0-100% PWM signal voltage convert PWM module 0v to 5 v / 0v to 10 v 0-100% PWM signal voltage convert PWM module
