LC-ADC-F103C8
USB Interface 10 Channel 12-Bit ADC Data Acquisition STM32
Advertising [ProductAdditionalInfo]
local_shipping FREE shipping on orders over $25.00 shipped by Amazon. Details
Advertising [Product3rdColumn]
Site hosted and secured in Eu.
Packages transported with the service of Bpost, DpD, PostNl or your own carrier.
Defective devices (not electronic components) are (according to the manufacturer's warranty) exchanged or repaired.
Overview

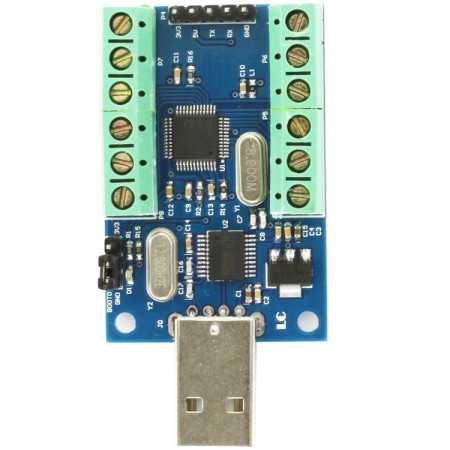

LC STM32 10-channel ADC module uses the internal 10-channel ADC resources of ST's STM32F103 family of microcontrollers as the sampling core. Having better accuracy and the ADC data can be uploaded to PC.
Function features
1.Onboard STM32F103C8T6 master chip
2.Onboard CH340 serial port to USB port chip, it is convenient to see AD sampling results on your PC
3.Reserved UART serial communication interface, can be connected to extern MCU
4.Analog input channels: 10-channel single-ended inputs
5.Sampling voltage input range: 0-3.3V
6.Power supply voltage: 5V / 3.3V
7.Resolution: 12 Bit (4096)
Hardware introduction and description
1.Board size: 50*33mm
2.Functions of the board
(1)Interface description
IN0-IN9: AD sampling voltage input
GND: power supply negative / sampling voltage common ground interface
TX, RX: UART communication interface
3V3 / 5V: reserved 3.3V / 5V power input port

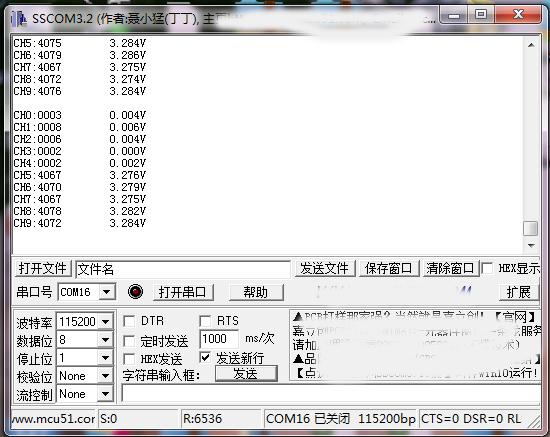

(2)Testing example: when IN0-IN4 connect to 0V and IN5-IN9 connect to 3.3V, we can see as below:
Kindly remind
1.We will offer source code to you, so you can modify it accord your personal requirements
2.The range of sampling voltage is 0-3.3V, please do not exceed this range
