LC-EM-1319
LC USB to four-way TTL serial port module USB to four-way UART with built-in LED indicator light onboard 0.5A fuse overcurrent protection PH2.0 horizontal patch terminal
Advertising [ProductAdditionalInfo]
local_shipping FREE shipping on orders over $25.00 shipped by Amazon. Details
Advertising [Product3rdColumn]
Site hosted and secured in Eu.
Packages transported with the service of Bpost, DpD, PostNl or your own carrier.
Defective devices (not electronic components) are (according to the manufacturer's warranty) exchanged or repaired.
The LC USB to Four TTL Serial Port Module is developed based on the CH344Q chip, which can convert one USB interface into four UART serial ports.
It has a Type-C 5V DC input, built-in LED indicator light, and a 500mA fuse on the input board. It supports overcurrent protection and uses PH2.0 horizontal patch terminals,
which have the characteristics of overcurrent protection, high performance, low power consumption, and low cost.

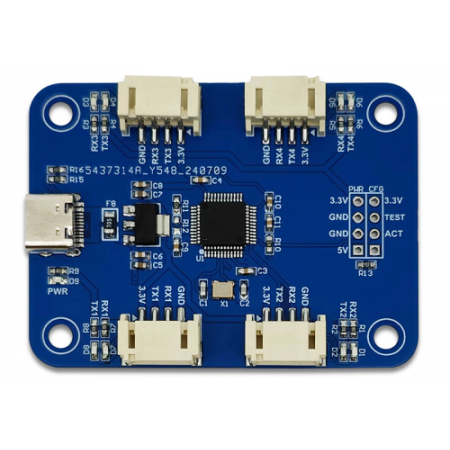

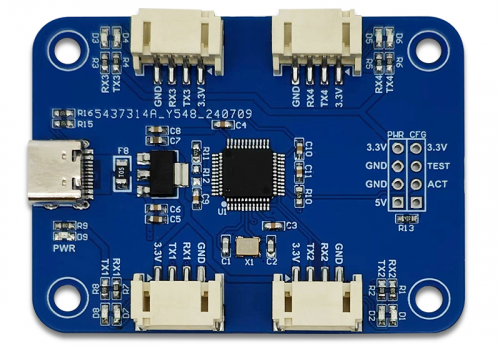

Front view

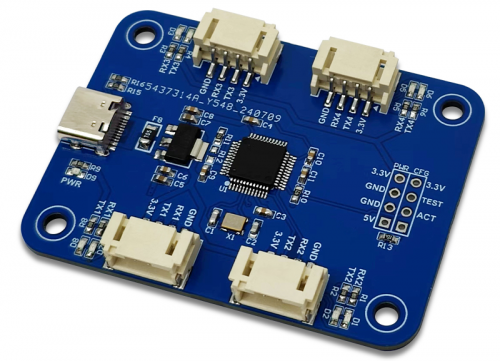

Side view

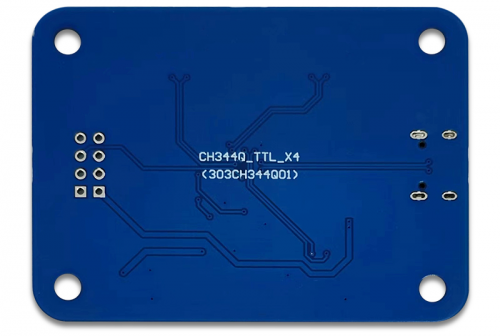

Reverse image

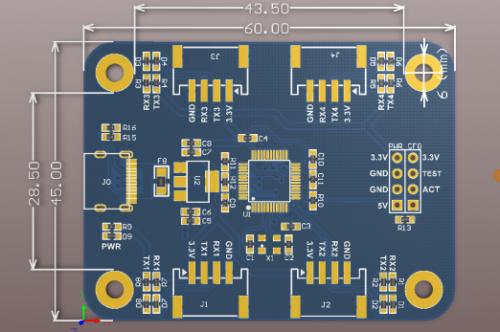

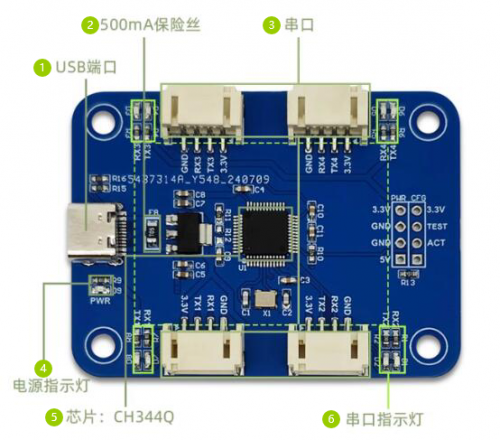

Introduction and Explanation
Size: 45 * 60mm/12 g
① USB port
② 500mA fuse
③ Serial port
④ Power indicator light
⑤ Chip: CH344Q
⑥ Serial port indicator light
Parameter：
Input voltage: 5V DC
Input interface type: USB Type-C
Output type: TTL UART serial port, with a total of four channels
Output terminal specification: PH2.0 horizontal patch terminal
Overcurrent protection: 500mA fuse
Chip model: CH344Q
Indicator lights: power indicator light, four-way UART signal indicator light
Functional Features
Supports USB to quad UART conversion
The output terminal adopts PH2.0 horizontal patch terminal
Comes with power indicator light and four-way UART signal indicator light
Input end board with 500mA fuse, supporting overcurrent protection
Module usage instructions
1. Install USB drivers on the computer (free, on request )
2. Connect the input end to the computer USB port, and connect the TX and RX of the output end with jumper caps.

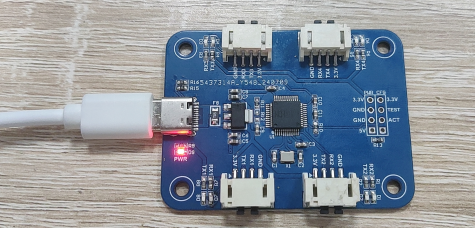

At this time, the LED power indicator light will light up

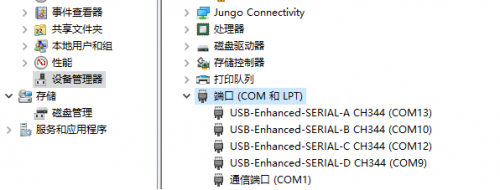

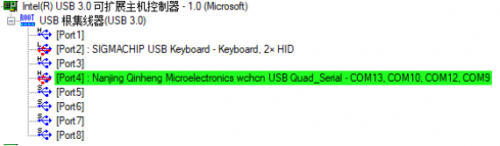

3. At this point, open the USB device viewer or the built-in device manager on the computer,
which will display information about the USB device and four COM ports

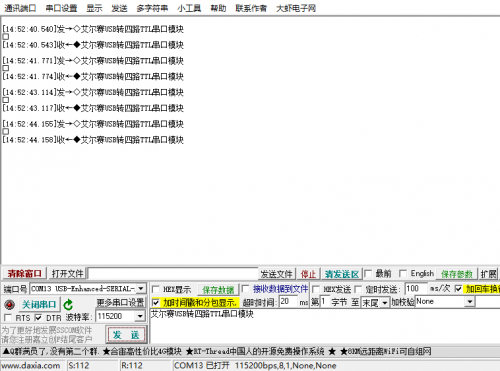

4. Open the serial debugger, select one of the serial port numbers, choose the appropriate baud rate, open the serial port and send data.
The window will receive this data without packet loss, as shown in the following figure:
