LC-EM-1320

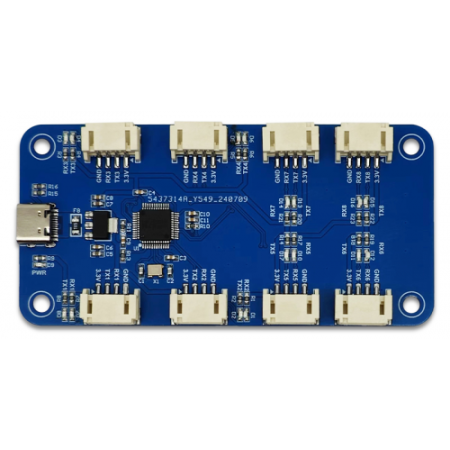

LC CH348Q USB to 8-channel TTL serial port module, multi-channel serial port expansion module, USB to 8-channel UART with built-in LED indicator light, onboard 0.5A fuse overcurrent protection, PH2.0 horizontal patch terminal
Advertising [ProductAdditionalInfo]
local_shipping FREE shipping on orders over $25.00 shipped by Amazon. Details
Advertising [Product3rdColumn]
Site hosted and secured in Eu.
Packages transported with the service of Bpost, DpD, PostNl or your own carrier.
Defective devices (not electronic components) are (according to the manufacturer's warranty) exchanged or repaired.
The LC USB to eight TTL serial port module is developed based on the CH348Q chip, which can convert one USB interface into eight UART serial ports.
It has Type-C 5V DC input, built-in LED indicator light, input terminal board with 500mA fuse, supports overcurrent protection, adopts PH2.0 horizontal patch terminals,
and has the characteristics of overcurrent protection, high performance, low power consumption, and low cost.

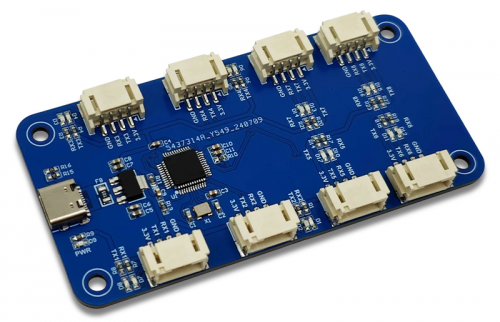

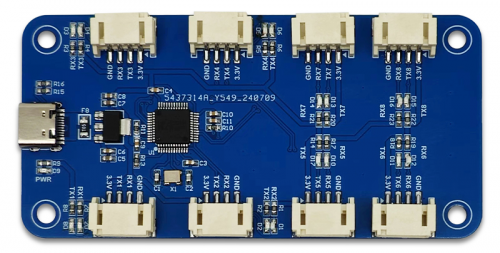

Front view
Side view

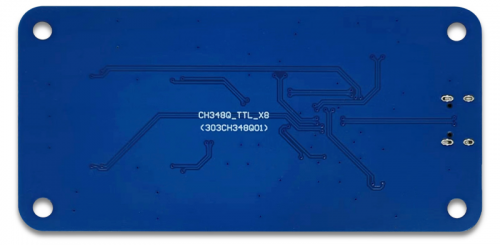

Reverse image
Introduction and Explanation

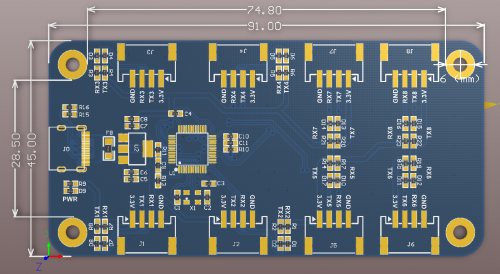

Size: 45 * 91mm/20 g

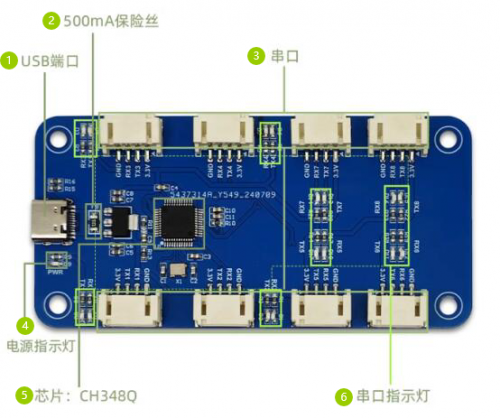

Interface Introduction:
① USB port
② 500mA fuse
③ Serial port
④ Power indicator light
⑤ Chip: CH348Q
⑥ Serial port indicator light
Technical parameters:
1. Chip model: CH348Q
2. Input voltage: 5V DC
3. Input interface type: USB Type-C
4. Output type: Eight TTL UART serial ports
5. Output terminal specification: PH2.0 horizontal patch terminal
6. Overcurrent protection: Onboard 500mA fuse
7. Indicator lights: power indicator light and eight UART signal indicator light
Functional Features
Supports USB to eight UART conversion
The output terminal adopts PH2.0 horizontal patch terminal
Comes with power indicator light and eight UART signal indicator lights
Input end board with 500mA fuse, supporting overcurrent protection
Module usage instructions
1. Install USB drivers on the computer
2. Connect the input end to the computer USB port, and connect the TX and RX of the output end with jumper caps.

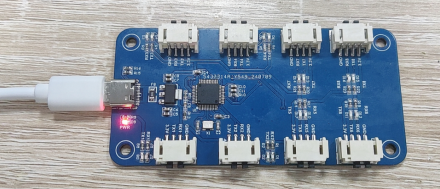

At this time, the LED power indicator light will light up

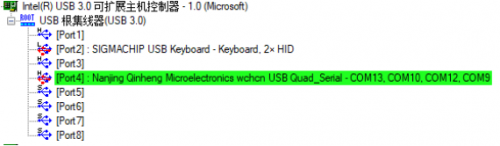

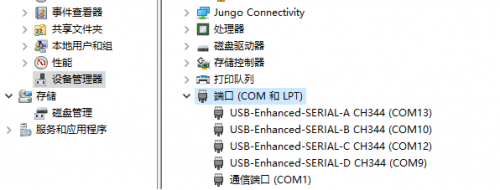

3. At this point, open the USB device viewer or the built-in device manager on the computer,
which will display information about the USB device and four COM ports

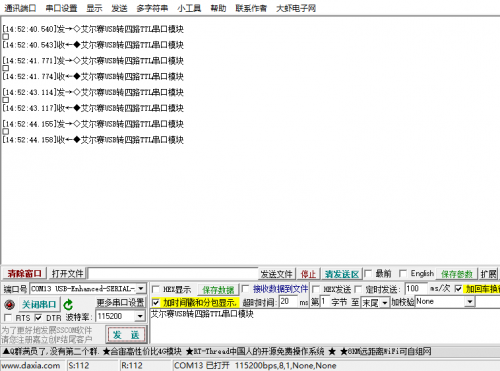

4. Open the serial debugger, select one of the serial port numbers, choose the appropriate baud rate, open the serial port and send data.
The window will receive this data without packet loss, as shown in the following figure:
