LCUS-2

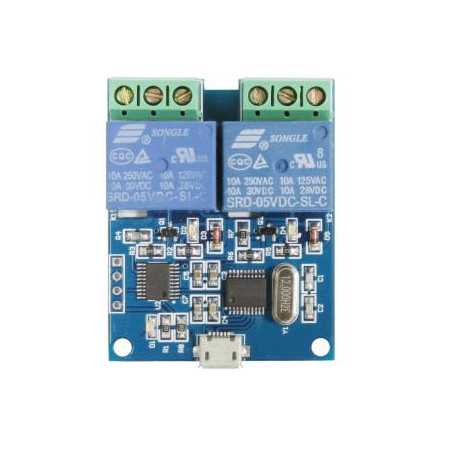

LCUS-2 2 Channel USB Relay Module USB Intelligent Control
Advertising [ProductAdditionalInfo]
local_shipping FREE shipping on orders over $25.00 shipped by Amazon. Details
Advertising [Product3rdColumn]
Site hosted and secured in Eu.
Packages transported with the service of Bpost, DpD, PostNl or your own carrier.
Defective devices (not electronic components) are (according to the manufacturer's warranty) exchanged or repaired.
Overview
LCUS-2 USB relay module equipped with stable performance USB to serial chip and microcontrollers, you can control the two relay on and off by send seial command on the computer.
Function features
1.Onboard high-performance microcontrollers chip
2.Onboard CH340 USB control chip
3.Onboard power LED and relay status LED
4.Onboard 2-Channel 5V, 10A / 250VAC, 10A / 30VDC relays, relay life can be continuous pull 10 million times
5.The module has over-current protection and relay diode follow current protection
Hardware introduction and description
1.Board size: 50*40mm
2.Communication protocol
The default baud rate is 9600 bps
You can control the 2-channel relay by send serial command on the PC(the command format is hex)
Open the first relay: A0 01 01 A2
Close the first relay: A0 01 00 A1
Open the second relay: A0 02 01 A3
Close the second relay: A0 02 00 A2

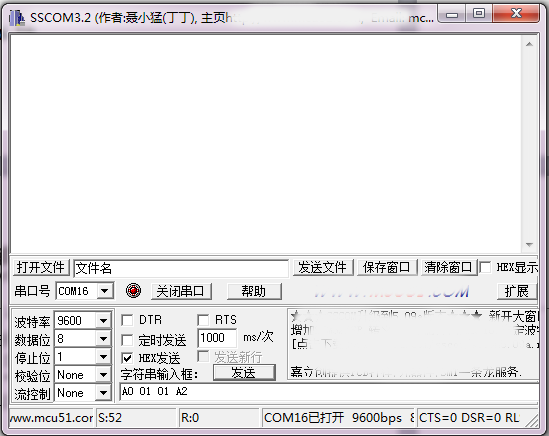

For example,if we want to open the first relay,just send A0 01 01 A2 on your PC,as below:
