LCUS-1

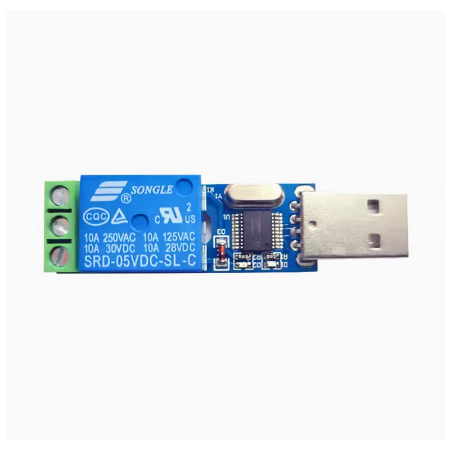

LCUS Type 1 USB Relay Module USB Intelligent Switch
Advertising [ProductAdditionalInfo]
local_shipping FREE shipping on orders over $25.00 shipped by Amazon. Details
Advertising [Product3rdColumn]
Site hosted and secured in Eu.
Packages transported with the service of Bpost, DpD, PostNl or your own carrier.
Defective devices (not electronic components) are (according to the manufacturer's warranty) exchanged or repaired.
Function features
1.Onboard high-performance micro-controller chips.
2.Onboard CH340 USB control chip.
3.Onboard LED power lights and relay status LED lights.
4.Onboard 5V,10A/250 VAC,10A/30 VDC relays,relay’s long life can absorb 100000 times in a row.
5.Module with over-current protection and relay diode current protection function.
6.PCB size: 49.6 (mm) x16 (mm).
LC USB switch the default communication baud rate: 9600 BPS
LC USB switch communication protocol
Data (1) - startup logo (the default is 0 xA0)
Data (2) - switch address code (the default is 0 x01, identifies the first switch)
Data (3) - operation data (0 x00 to "off", 0 x01 to "on")
Data (4) - check code
For example:
Open the USB switch:A0 01 01 A2
Close the USB switch: A0 01 00 A1
