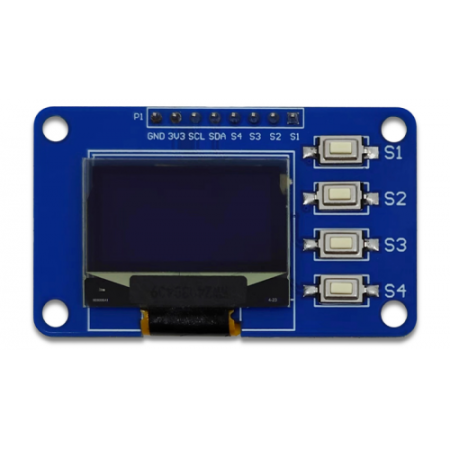

LC-EM-1318

About

The LC four key OLED display module is equipped with a 0.96-inch 128x64 pixel OLED screen and four touch keys.
It communicates with the outside world through the IIC communication interface and key interface.
The module has the characteristics of small size, fast response, and stable performance.

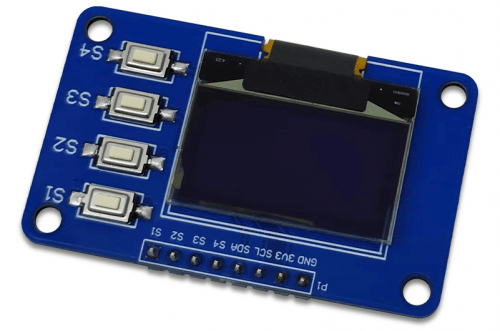

Front view

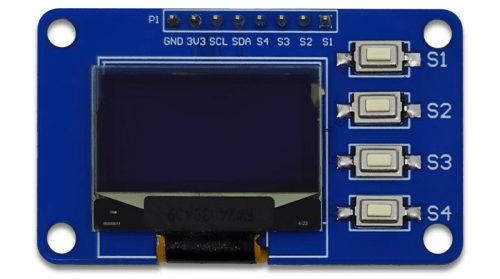

Side view

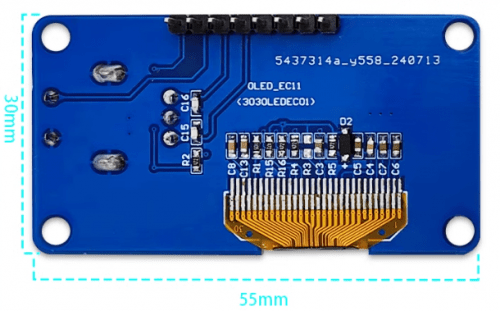

Reverse image

Introduction and Explanation

Size: 30 * 50mm/8 g

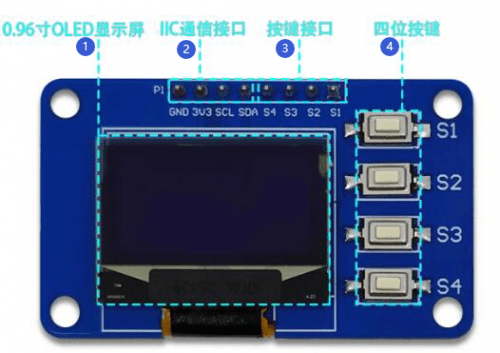

①　0.96-inch OLED display screen
②　IC communication interface
③　Key interface
④　Four keys


Functional Features

    Onboard 0.96-inch OLED screen with IIC communication interface

    Onboard four touch keys and lead out button interfaces

    Connect external microcontrollers through pins for use

    Characterized by small size, fast response, and stable performance



Minimum Development Board Burning Instructions

1. Program burning - USRT: Prepare a USB to TTL module (such as CH340) to plug into the computer's USB port,
and then prepare an STM32 mini development board. The connection method is as follows:


TTL serial port module     STM32 minimum development board
GND     GND
TX     RX
RX     TX
3.3V     3.3V

Then plug in the jumper cap between the BOOT0 pin and 3.3V to burn the firmware

2. Program burning - SWD: Prepare a Link debugger (ST Link, J-Link, etc.) to plug into the USB port of the computer,
and then prepare an STM32 mini development board. The connection method between Link and the development board is as follows:
Link debugger     STM32 minimum development board
GND     GND
SWCLK     CLK
SWDIO     DIO
3.3V     3.3V

Then select the firmware for burning

3. Program debugging: After connecting the Link burner in the above way, click the "Debug" key of the compiled software, select "ST Link", and then click Settings

If the SW Device displays a device, it means that the debugger has successfully recognized it. Set the parameters according to the following figure and click OK

4. Module Function Testing

After the burning is completed, connect the OLED display module to the minimum development board according to the following table:
Display module     STM32 minimum development board
GND     GND
3.3V     3.3V
SCL     PA5
SDA     PA7
B     PA1
A     PA2
D     PA3
S1     PA4

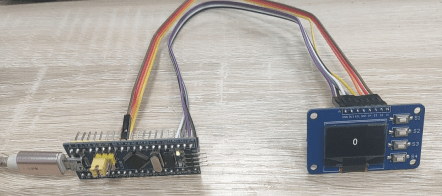

Then power on, as shown in the picture:

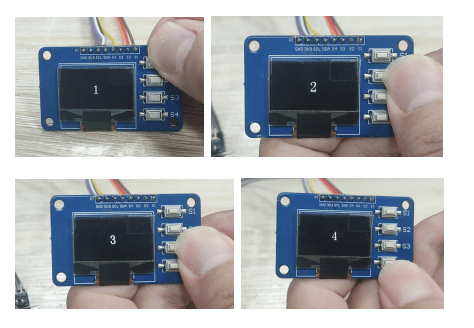

When no button is pressed, the screen will display "0";

When pressing S1, S2, S3, and S4, the screen will display "1", "2", "3", and "4" respectively;

The above tests show that everything is normal on the module.
