LC-EM-1317
LC rotary encoder key OLED display module rotary encoder+touch key 0.96-inch OLED screen display IIC protocol
Advertising [ProductAdditionalInfo]
local_shipping FREE shipping on orders over $25.00 shipped by Amazon. Details
Advertising [Product3rdColumn]
Site hosted and secured in Eu.
Packages transported with the service of Bpost, DpD, PostNl or your own carrier.
Defective devices (not electronic components) are (according to the manufacturer's warranty) exchanged or repaired.
About

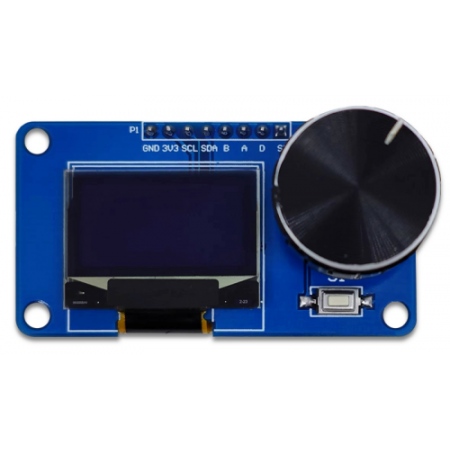

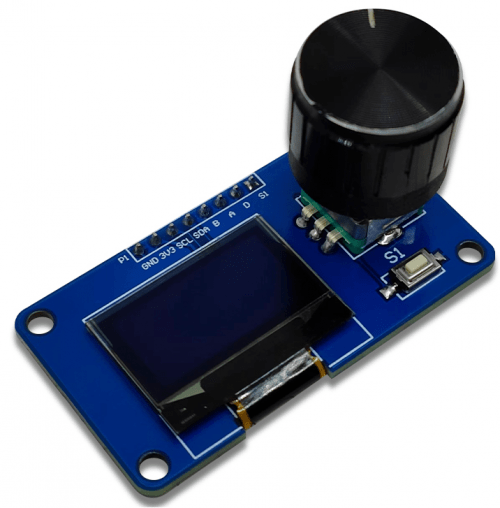

The LC rotary encoder key OLED display module is equipped with a 0.96-inch 128x64 pixel OLED screen, an EC11 rotary encoder,
and one touch key. It communicates with the outside world through the IIC communication interface and key interface.
The module has the characteristics of small size, fast response, and stable performance.

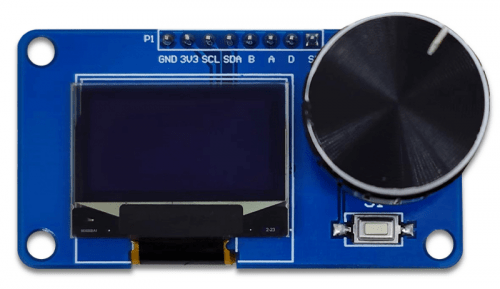

Front view
Side view

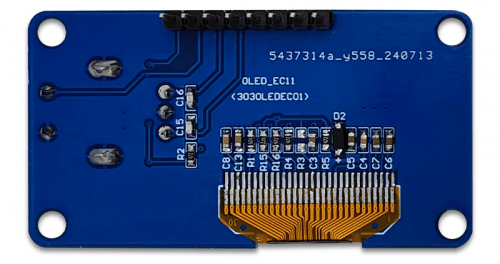

Reverse image

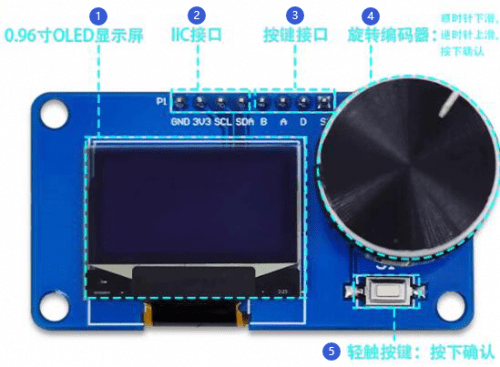

Introduction and Explanation
Size: 30 * 55mm/14 g
① 0.96-inch OLED display screen
② IIC interface
③ Key interface
④ Rotary encoder：Clockwise descent,Slide counterclockwise upwards,Press confirm
⑤ Tap the button: Press to confirm
Functional Features
Onboard 0.96-inch OLED screen with IIC communication interface
Onboard EC11 rotary encoder+1 touch key, and lead out interface
Connect external microcontrollers through pins for use
Characterized by small size, fast response, and stable performance
Minimum Development Board Burning Instructions
1. Program burning - USRT: Prepare a USB to TTL module (such as CH340) to plug into the computer's USB port,
and then prepare an STM32 mini development board. The connection method is as follows:
TTL serial port module STM32 minimum development board
GND GND
TX RX
RX TX
3.3V 3.3V
Then plug in the jumper cap between the BOOT0 pin and 3.3V to burn the firmware
2. Program burning - SWD: Prepare a Link debugger (ST Link, J-Link, etc.) to plug into the USB port of the computer,
and then prepare an STM32 mini development board. The connection method between Link and the development board is as follows:
Link debugger STM32 minimum development board
GND GND
SWCLK CLK
SWDIO DIO
3.3V 3.3V
Then select the firmware for burning

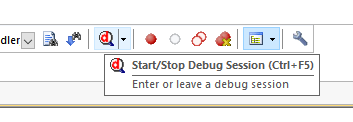

3. Program debugging: After connecting the Link burner in the above way, click the "Debug" key of the compiled software, select "ST Link", and then click Settings

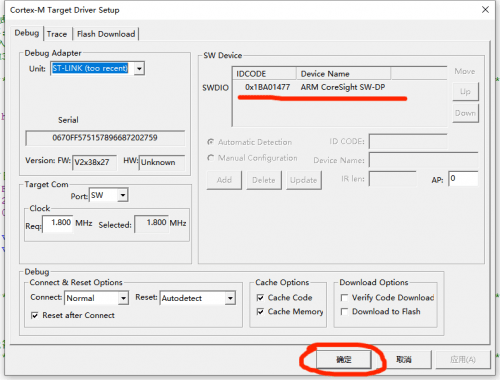

If the SW Device displays a device, it means that the debugger has successfully recognized it. Set the parameters according to the following figure and click OK
If the SW Device displays a device, it means that the debugger has successfully recognized it. Set the parameters according to the following figure and click OK
4. Module Function Testing
After the burning is completed, connect the OLED display module to the minimum development board according to the following table:
Display module STM32 minimum development board
GND GND
3.3V 3.3V
SCL PA5
SDA PA7
B PA1
A PA2
D PA3
S1 PA4

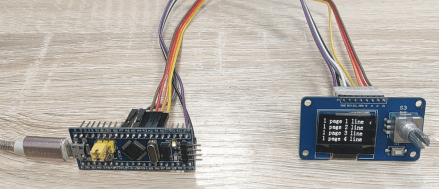

Then power on, as shown in the picture:
After booting up, the screen will display the initial menu

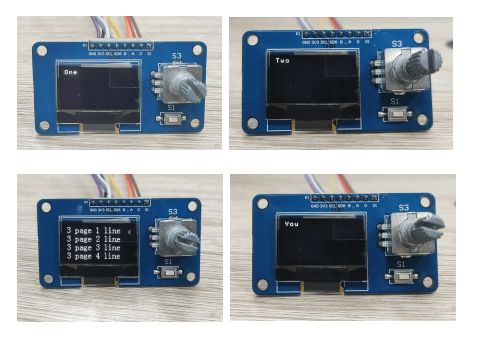

Rotate the encoder clockwise or counterclockwise, and the cursor will slide up and down. Then press S1 or press the encoder,
and the screen will enter the secondary menu. Turning the knob again will exit:
The above tests show that everything is normal on the module.
