LC JY02 DC brushless Hall drive board, using JY02 chip as the core, combined with FD6288T gate drive IC, provides efficient and stable DC brushless motor drive solution

This drive board supports precise control of three-phase brushless motors. Simply connect the UVW three-phase wires of the motor to control its rotation. It supports SPWM drive mode and can adjust the speed by inputting PWM signals through a rotary potentiometer. At the same time, the motor can be controlled in both forward and reverse directions through pins. The drive board has overload, over temperature, and locked rotor protection functions to ensure safe and stable operation of the motor

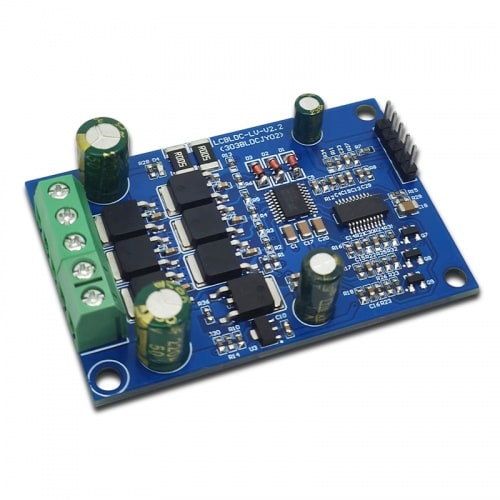

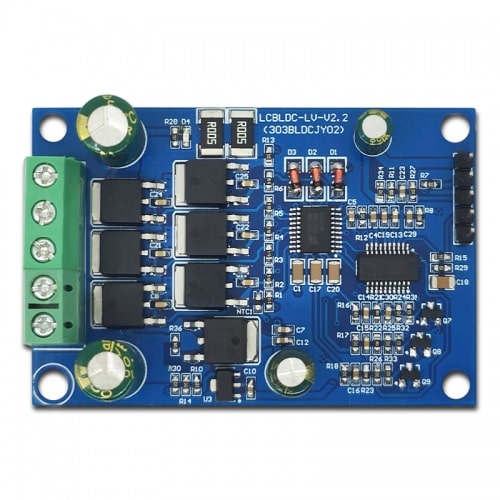

Front view

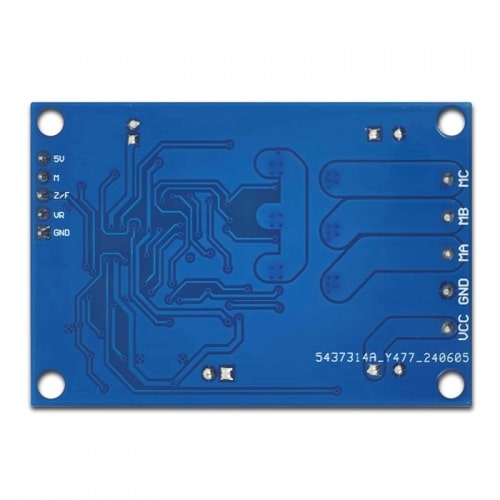

Reverse image

Side view

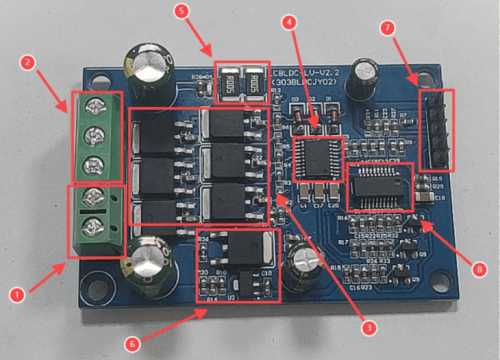

Hardware Introduction and Explanation

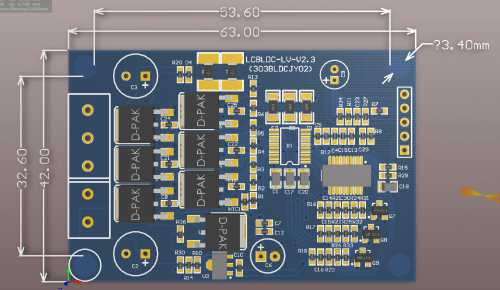

Board size: 42 * 63mm/19 g

1. Power supply port: 12-37V DC

2. Brushless motor output port: Connect the wires of the three-phase brushless motor in any order, and change the position of any two wires to change the rotation direction of the motor.

3. NMOS transistor: JY09M

4. Gate driver IC: FD6288T

5.5MR sampling resistance

6. Linear regulator: LM317+78L05

7. Speed control port: Connect potentiometer (5V - VR - GND pin)

8.MCU：JY02A

Functional Features

• Wide voltage input range: Strong adaptability to power supply voltage, covering 12 to 37 volts, ensuring stable operation in different power supply environments

• Strong current output: Supports a maximum output current of up to 5 amperes, and achieves flexible control of current magnitude through precise sampling resistor design

• Intelligent speed adjustment: equipped with a rotary potentiometer, users can easily adjust the motor speed according to their needs, achieving precise speed control
• Safety protection mechanism: Equipped with a built-in thermistor and advanced protection circuit, it provides overload, over temperature, and locked rotor protection to ensure the safe and stable operation of the motor under various working conditions

• Efficient driving technology: Adopting SPWM (sine pulse width modulation) driving method to optimize motor performance, improve energy efficiency, and achieve efficient and smooth motor driving

Instructions for use

1. Power the drive board (DC 12-37V)

2. Connect the potentiometer (5V-VR-GND pin) and rotate the potentiometer knob counterclockwise to the lowest gear to prevent the motor from automatically turning on when powered on

3. Connect the output line of the brushless motor (the three wires of the three-phase brushless motor can be connected in any order, and changing the connection order of any two wires can change the rotation direction of the motor)

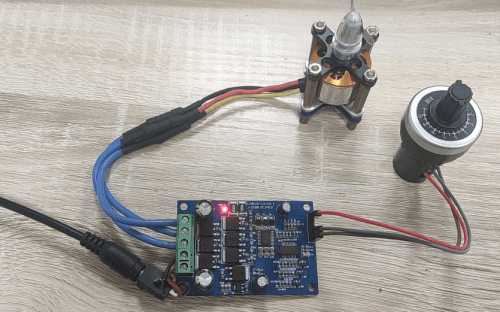

4. Slowly rotate the potentiometer knob clockwise, and the motor will start to rotate, as shown in the figure:

Attention:

1. This module has a fast response speed, and the instantaneous starting current is very high when the full throttle is powered on. Please leave a margin. It is not recommended to start under high voltage and high power full throttle conditions, as this operation may damage the power transistor and chip.

2. There is no fuse in the power supply circuit on the motherboard. It is recommended that users add it themselves. Reversing the positive and negative poles of the power supply can cause permanent damage to some chips on the board

3. During normal operation, there is motor stalling protection. Due to the high power and current of the module, please do not artificially short circuit when the module is not working properly. Once short circuited, there is a possibility of burning the circuit and bursting the tube. For the first wiring test, please use a low current and low voltage (12V voltage) to test. After the motor is working normally, adjust the current and voltage again

4. Do not connect motors that do not match or differ significantly from the voltage, current, or power of the drive module to avoid inexplicable damage
