LC-NW-13-3
RS485 to Ethernet RS485 to Ethernet RS485 serial port to Ethernet serial port transparent transmission communication module
Advertising [ProductAdditionalInfo]
local_shipping FREE shipping on orders over $25.00 shipped by Amazon. Details
Advertising [Product3rdColumn]
Site hosted and secured in Eu.
Packages transported with the service of Bpost, DpD, PostNl or your own carrier.
Defective devices (not electronic components) are (according to the manufacturer's warranty) exchanged or repaired.
RS485 to Ethernet RS485 to Ethernet RS485 serial port to Ethernet serial port transparent transmission communication module
Overview
This product can serve as a TCP server, and when used, simply connect the product to the TCP client through a network cable,
and enter the corresponding IP address and port number on the client to easily establish a stable network connection.
After the connection is established, data can be sent from the TCP client to the RS485 device, and at the same time,
the RS485 device can also transmit data back to the TCP client, achieving efficient bidirectional data exchange.
Overview
This product can serve as a TCP server, and when used, simply connect the product to the TCP client through a network cable,
and enter the corresponding IP address and port number on the client to easily establish a stable network connection.
After the connection is established, data can be sent from the TCP client to the RS485 device, and at the same time,
the RS485 device can also transmit data back to the TCP client, achieving efficient bidirectional data exchange.

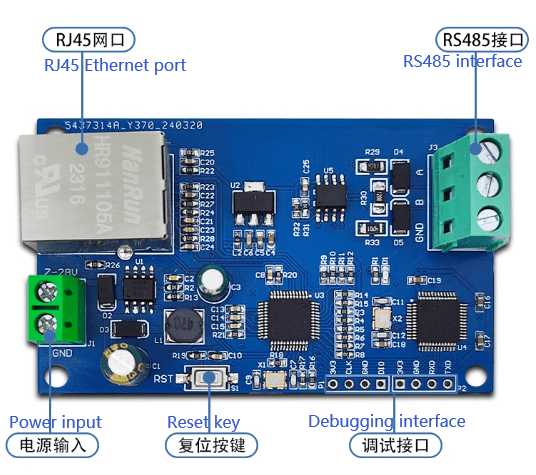

Introduction and Explanation
Size: 73mm * 46mm/28g (positioning hole diameter: 3mm)

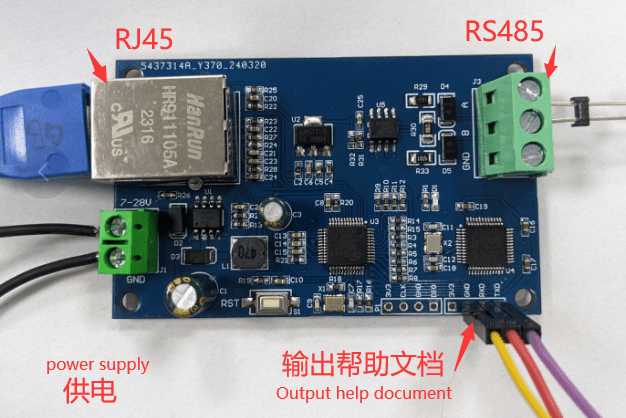

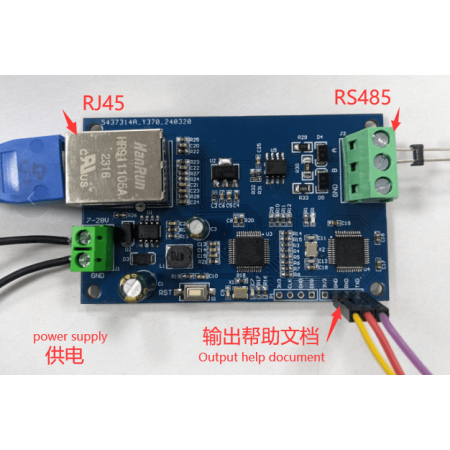

Instructions for use
1. Connect RS485 properly
2. Connect the network cable properly
3. The serial port for displaying the help document can be connected or not
4. Plug in the power and provide 7-28V power supply
5. If there is no problem with the network, it will return "ready" through 485
6. TCP server opens port 192.168.0.72:5000 and can exchange data
7. The IP and port are fixed and cannot be changed, and can only be used as a TCP server
