Overview
LC  ESP8266 watch of development board,using ESP-12F module,8266 chip can development  your want functions.  Onboard 3.7V lithium battery and charging circuit. The appearance is a watch type with a strap,which can be worn on the hand, plus an oled display is more intuitive and beautiful.


Function
Onboard a 1.3-inch OLED core is SH1106, One RGB light and three-way pulsator switch,Powered by 3.7v polymer lithium battery, The USB port can be used as a programming port or a charging port:small size match strap wearing  Very convenient, you can control your device anywhere.


Hardware introduction and description
1.Board size: 45 * 38mm
Height after installation: 18mm
Weight: 30g

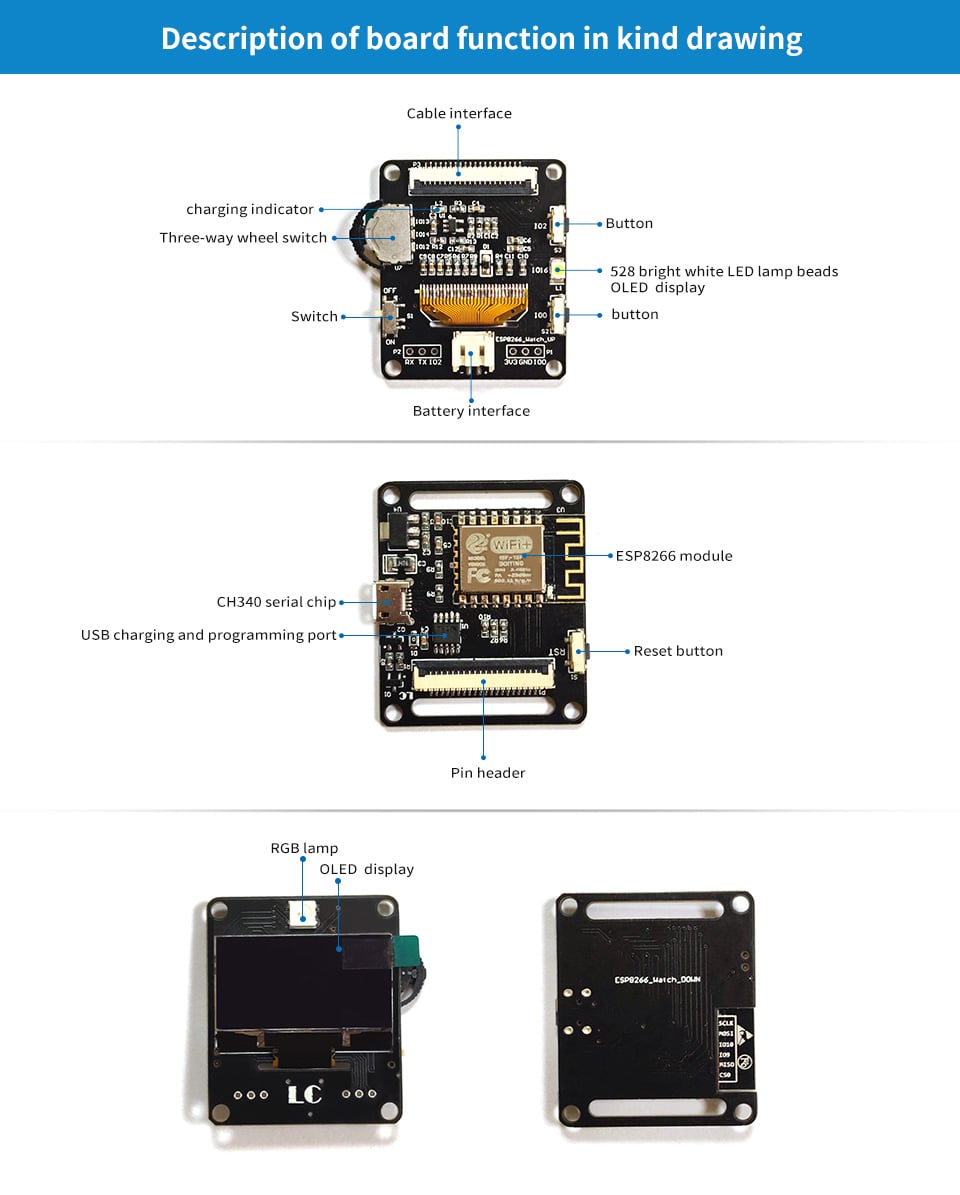

2.Board physical map description

3.Test instructions

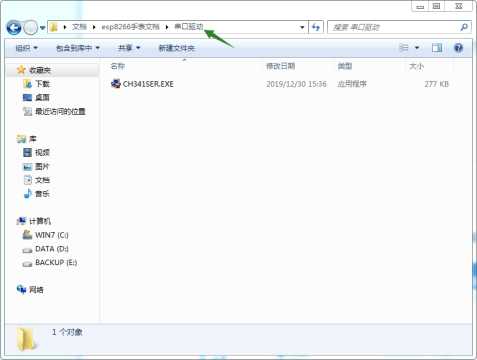

Connect the USB cable and connect the computer, open the folder of the serial port driver, and install the driver of the CH340. If you have installed and tested it works  previously, you don't need to install it. If it doesn't work, the driver version may be too low and you need to reinstall it.

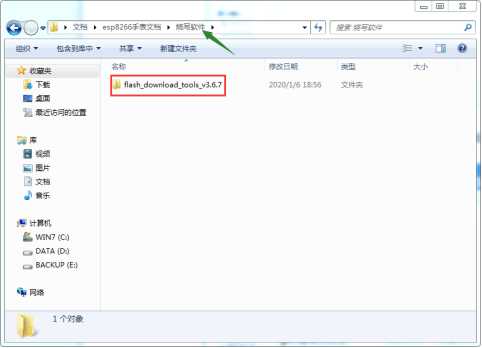

Please open flash_download_tools_v3.6.7 of the programming software and select ESP8266

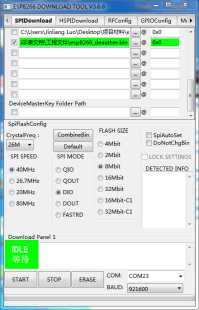

Then select the project file esp8266_deauther.bin to burn to the ESP8266 watch. The burning configuration is shown as below:

Note
When programming the ESP8266 watch development board, the upper and lower boards need to be connected to the cable and the switch can be turned on for normal programming!
